BC SKO-01
TSS GROUP REAR VIEW CAMERA – SKODA / VW / PORCHE
BC SKO-01

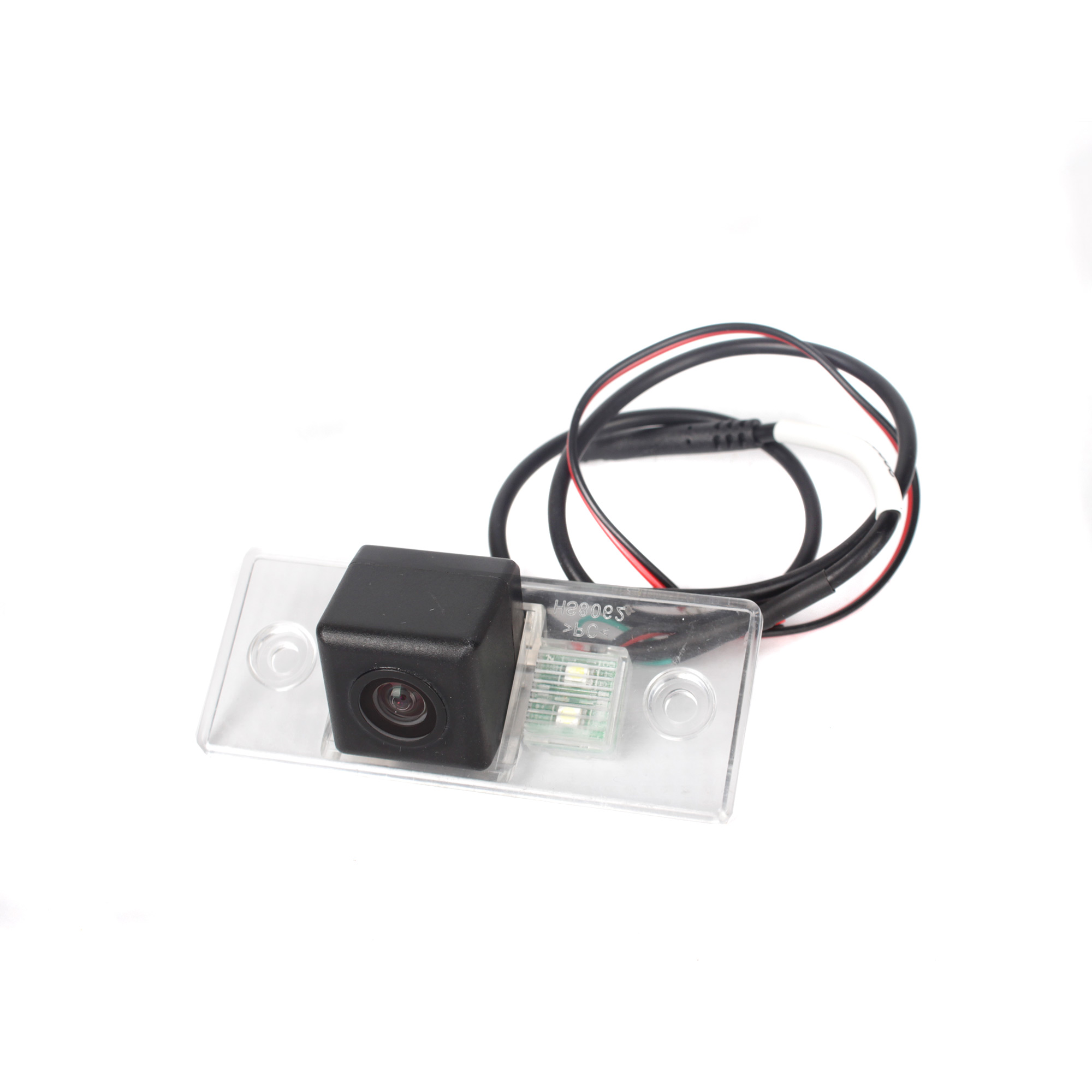

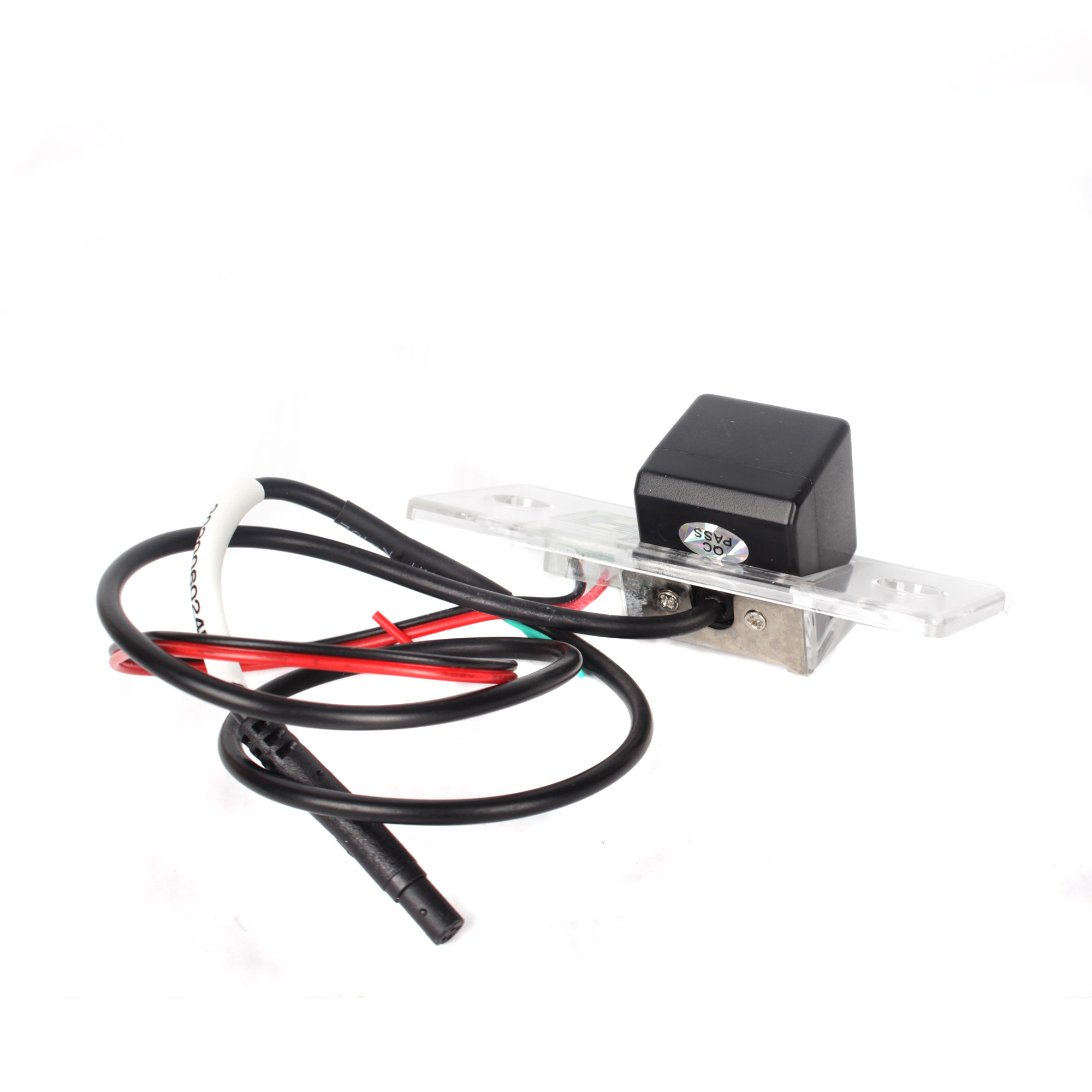

I Rearview camera Škoda VW Porche
OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.
| TECHNICAL PARAMETERS: | |
| ASSIGNED FOR CAR MODELS | PORSCHE Cayenne I. (2002-2010) ŠKODA Fabia I. (1999-2008) hatchback / sedan / combi ŠKODA Fabia II. (2006->) hatchback / combi ŠKODA Superb I. (2001-2008) VW Passat B5 (2001-2005) |
| SENSOR | PC3089 1/3″ |
| OPTION | Enable/disable guide lines display |
| ELECTRONIC APERTURE | 1/60 – 1/10000 sec. |
| MINIMUM ILLUMINATION | 0.1 Lux |
| SIGNAL-TO-NOISE RATIO | > 48 dB |
| TV SYSTEM | NTSC (Supported by each monitor/head unit) |
| NUMBER OF TV LINES | 600 TVL |
| EFFECTIVE PIXELS | 668 × 576 |
| WEATHER PROTECTION | IP67 |
| VIEW ANGLE | 170° |
| CAMERA BODY | Durable plastics “private housing” |
| IMAGE DISPLAY | Mirror |
| OPERATING TEMPERATURE | -30 °C to +70 °C |
| AUTO SETTINGS | AGC, BLC, White Balance |
| SIGNAL CABLE | 6.2 m long with CINCH / RCA connector |
| VIDEO OUTPUT | 1.0V / 75 Ohm |
| POWER CORD | 1 m |
| POWER SUPPLY | 12V DC |
| CONSUMPTION | <1 W |
| CAMERA DIMENSIONS | Base: 32 × 79 mm Pitch between attachment points: 60 mm |
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
| BRAND | |
|---|---|
| FEATURES | REAR VIEW CAMERA |
| CAR SPECIFIC KITS | PORSCHE, SKODA, VOLKSWAGEN |
