BC UNI-AHD
KEETEC CAMERA REAR/FRONT VIEW AHD
BC UNI-AHD

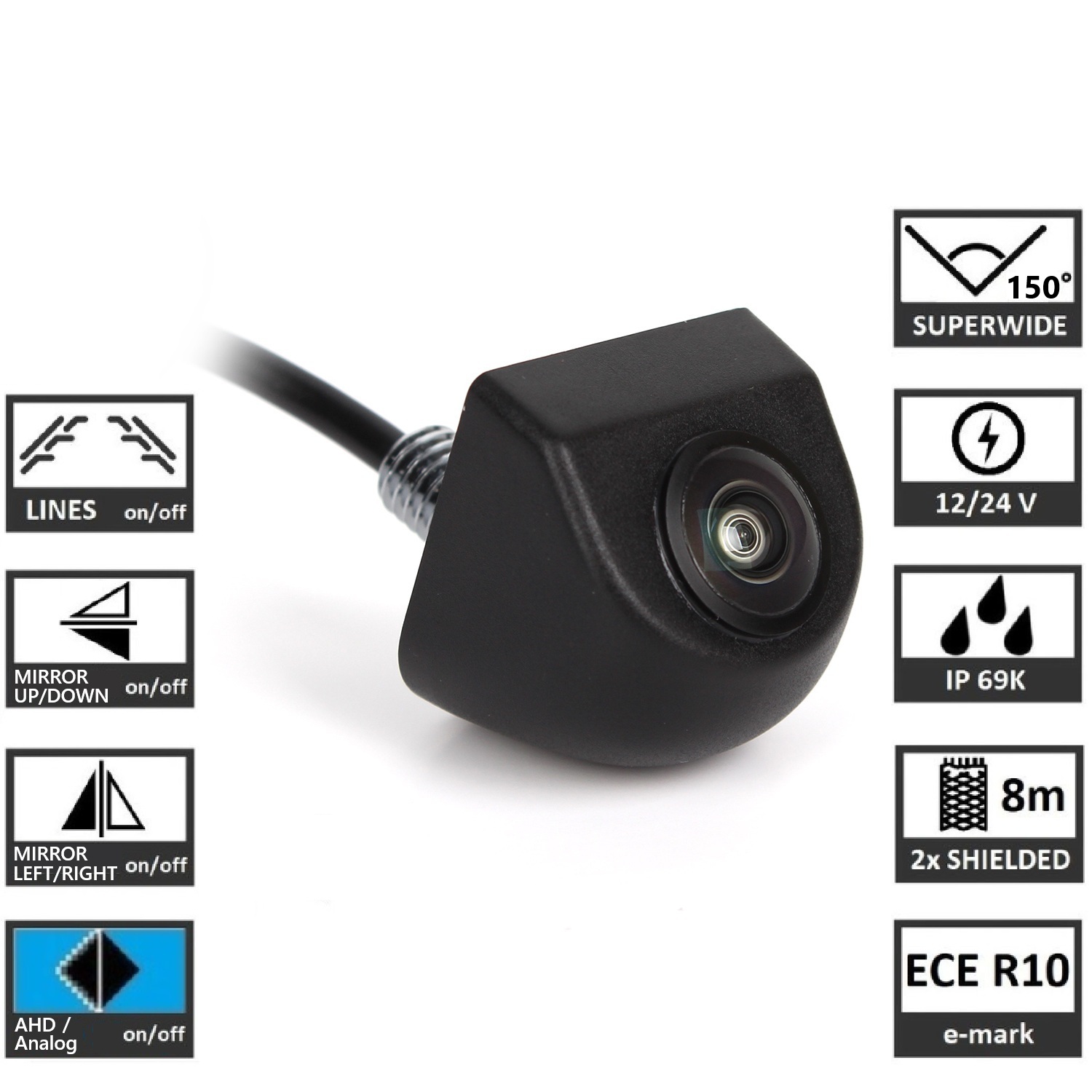

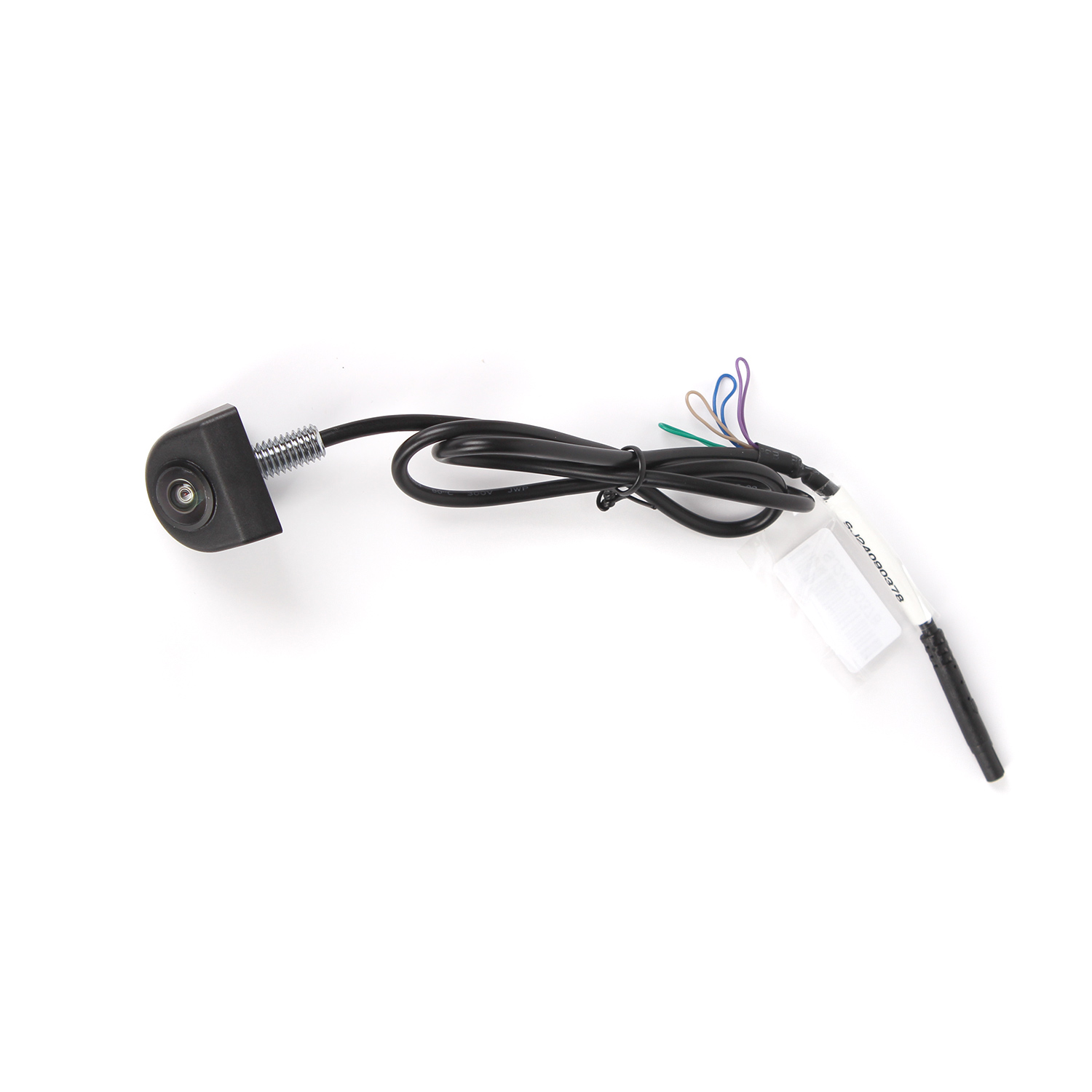

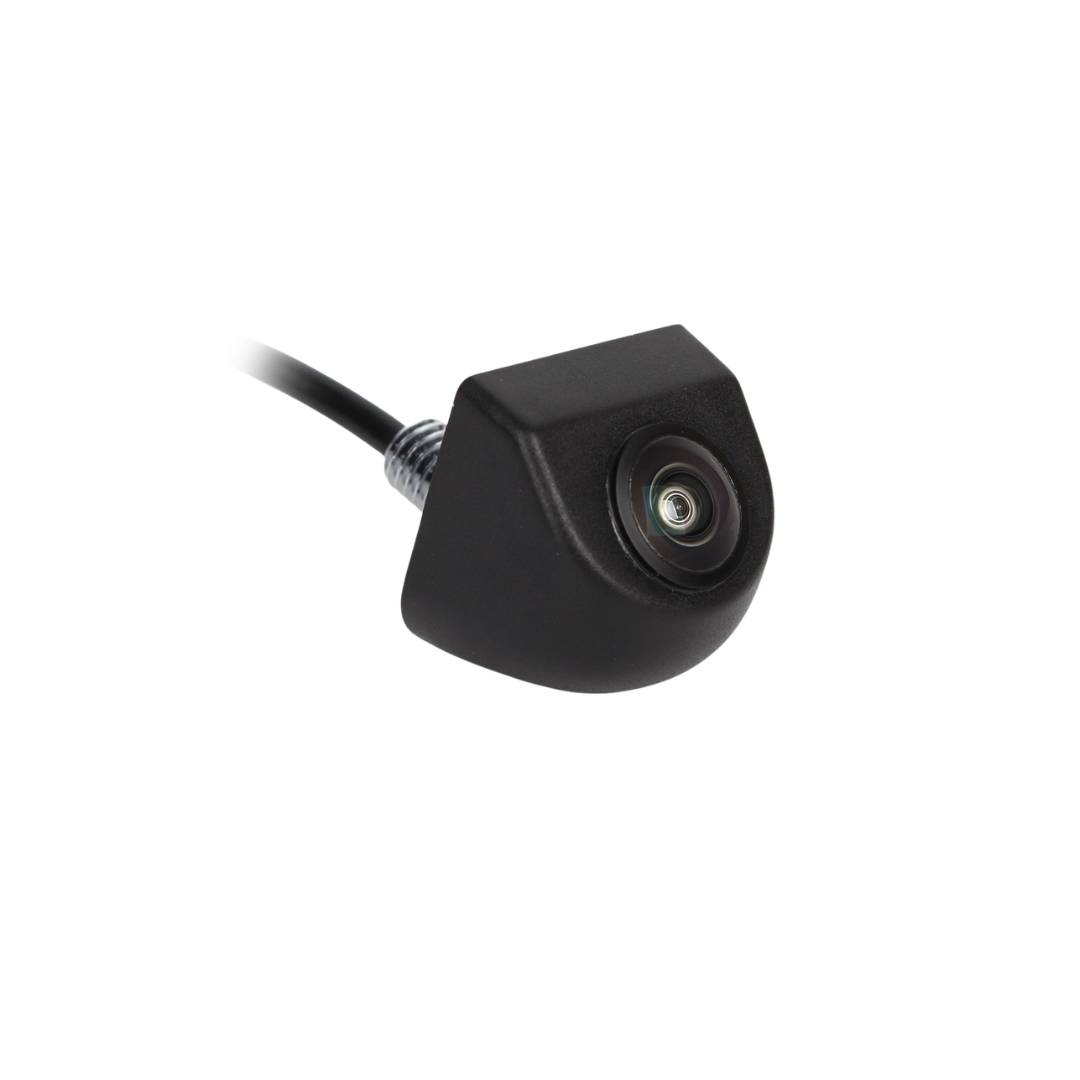

I BC UNI Universal rearview camera 1080p AHD/RCA, 150°
Universal rearview camera contains 4 setup functions, allows to change the video signal type (AHD/Analog), to switch the image Left-Right and Up-Down picture orientation and to turn on/off the guide lines. Any AHD or analog monitor can be connected to the camera. The camera can be mounted on both a horizontal and vertical surface.
| TECHNICAL PARAMETERS: | |
| IMAGE SENSOR | 1/3″ LOW LIGHT HD CMOS |
| VIEWING ANGLE | 150° (HORIZONTAL) |
| SIGNAL TYPE (AHD) | 1920 × 1080 (1080P) |
| SIGNAL TYPE (ANALOG) | 800 TVL |
| APERTURE | F1.2 |
| POWER SUPPLY | 12V / 24V |
| TV SYSTEM | NTSC |
| BLC | AUTO |
| WEATHER PROTECTION | IP69 |
| CABLE TYPE | DOUBLE SHIELDED |
| CABLE LENGTH | 8 M (CINCH) |
| CONNECTOR | SLIM CONNECTOR 5 MM |
| POWER CONNECTION | REVERSING LIGHT / IGNITION |
| CAMERA DIMENSIONS | 29.3 × 25.3 × 23 MM |
| OPERATING TEMPERATURE | -20°C TO +75°C |
| CERTIFICATION | ECE R10 |

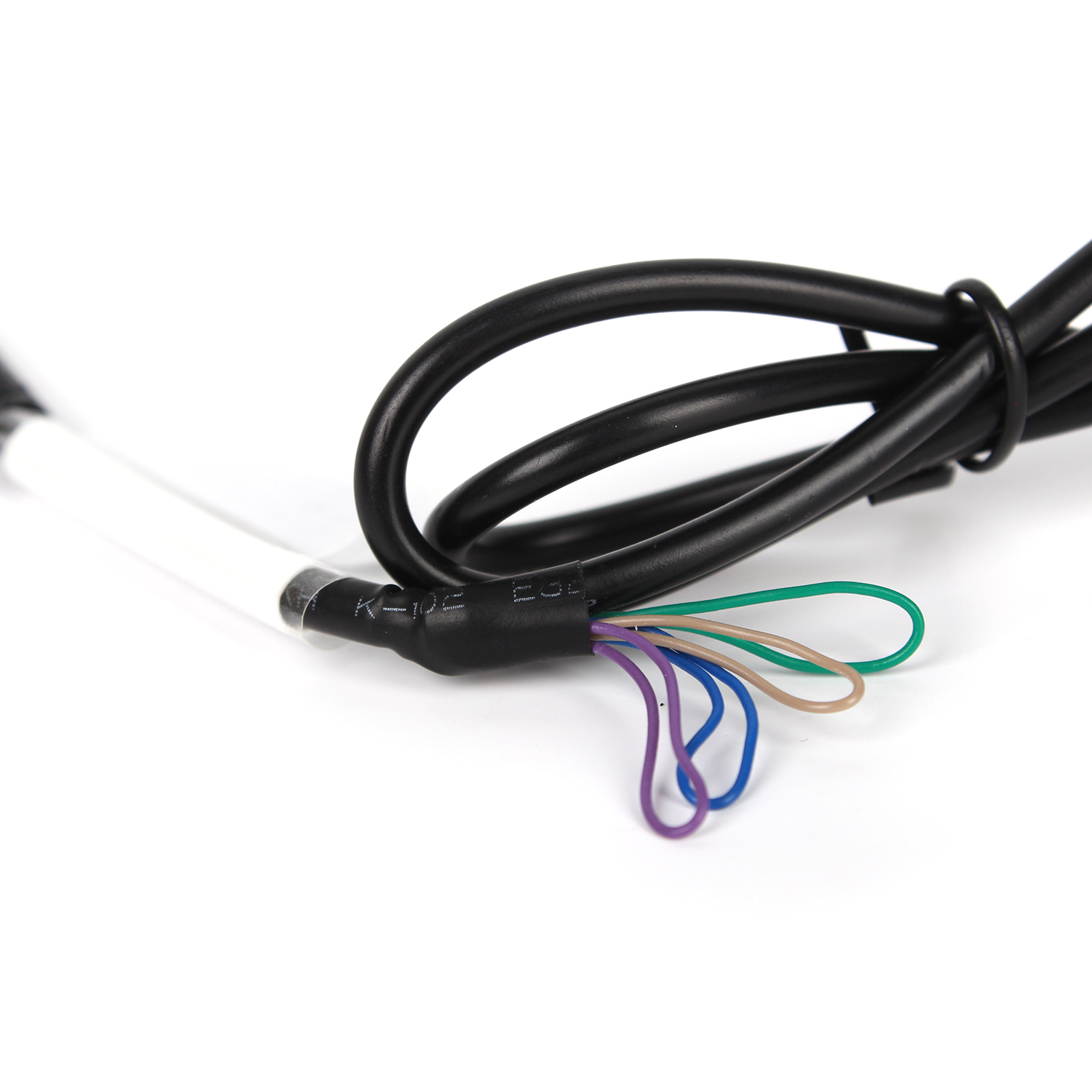

| IMAGE SETTINGS | GREEN LOOP – GUIDE LINES BLUE LOOP – RIGHT / LEFT FLIP (MIRROR IMAGE) BROWN LOOP – HORIZONTAL / VERTICAL FLIP PURPLE LOOP – VIDEO SIGNAL SWITCH (AHD 1080P / ANALOG 800 TVL) |
| BRAND | |
|---|---|
| FEATURES | AHD CAMERA (1080P), FRONT VIEW CAMERA, REAR VIEW CAMERA, UNIVERSAL |
