BC UNI-WIDE AHD
KEETEC CAMERA REAR/FRONT VIEW AHD
BC UNI-WIDE AHD
| BC UNI-WIDE AHD

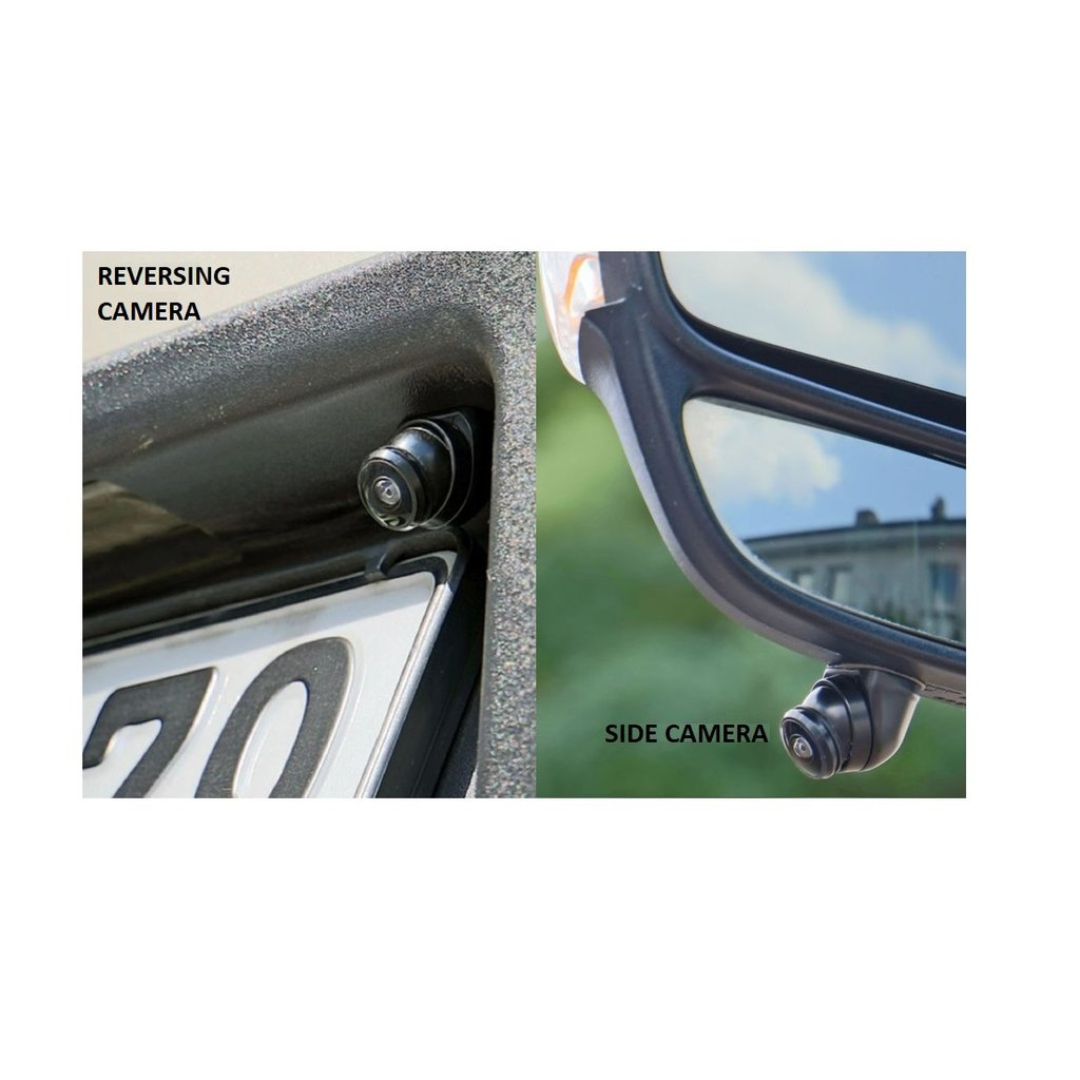

Universal miniature parking camera with 180° view angle, with FullHD resolution 1080p – AHD signal, use as a rearview camera in the licence plate space, or as a side camera to the rearview mirror, or as a front to the grille of the front mask/bumper, with the option to turn the guidelines on/off and to change the left/right image orientation. For display, use an AHD compatible monitor (e.g. TFT5A2, TFT7HD2, TFT MIRROR7,…).

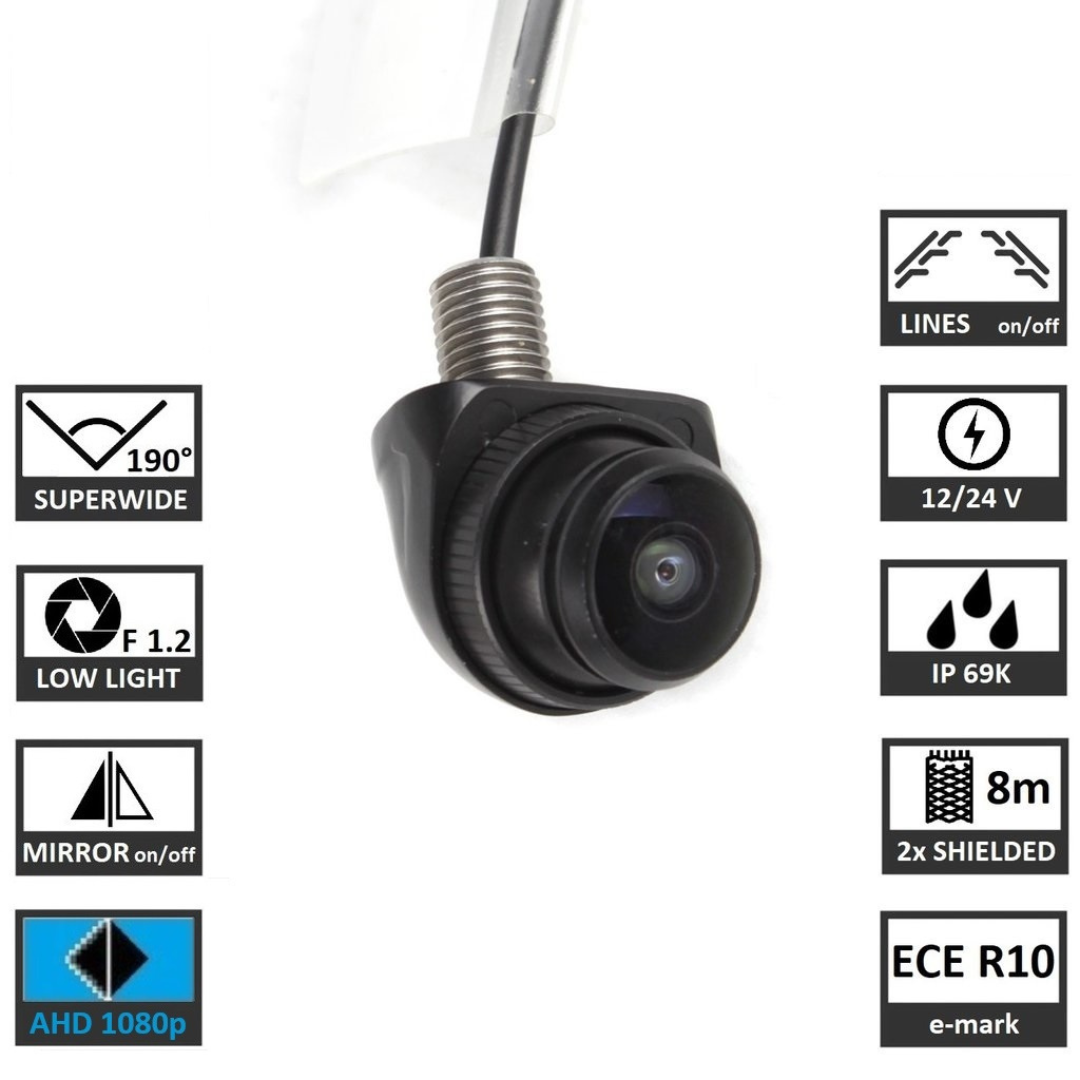

TECHNICAL PARAMETERS: |
|
| IMAGE SENSOR | 1/3″ LOW LIGHT HD CMOS SENSOR |
| VIEWING ANGLE | 180° HORIZONTAL |
| RESOLUTION | 1920 × 1080 (1080P) |
| SIGNAL TYPE | AHD |
| APERTURE | F1.2 |
| POWER SUPPLY | 12V / 24V |
| TV SYSTEM | NTSC |
| BLC | AUTO |
| WEATHER PROTECTION | IP69 |
| CABLE | DOUBLE SHIELDING |
| CABLE LENGTH | 8 M |
| CONNECTOR | CINCH (RCA) |
| CONNECTOR SIZE | SLIM 5MM |

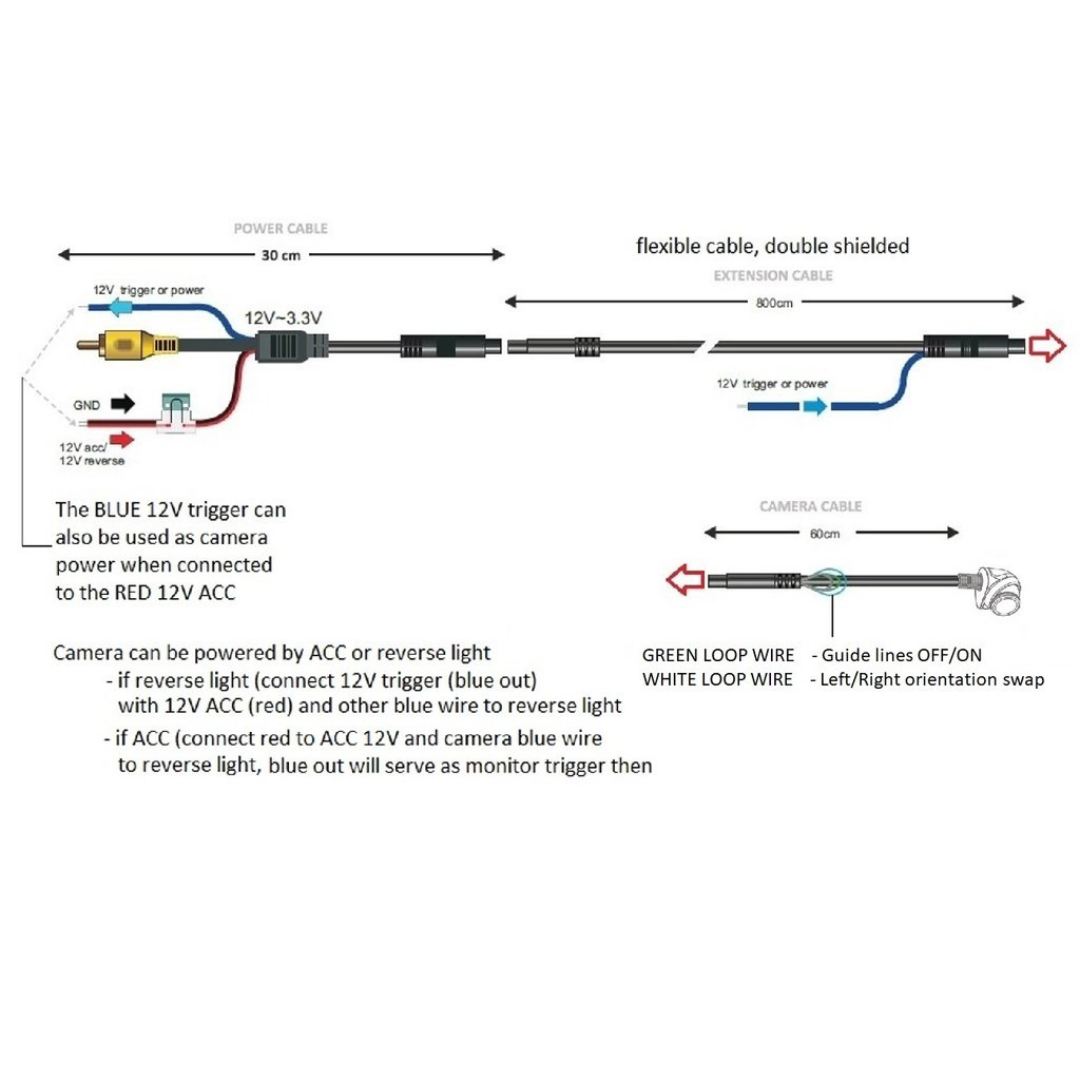

| POWER CONNECTION | REVERSING LIGHT / IGNITION |
| WORKING TEMPERATURE | -20°C TO 75°C |
| CERTIFICATION | ECE R10 |
| GREEN LOOP | GUIDE LINES (DISAPPEAR AFTER CUTTING – DISPLAYED BY DEFAULT) |
| WHITE LOOP | IMAGE ORIENTATION (LEFT / RIGHT SWAP AFTER CUTTING) |
| BRAND | |
|---|---|
| FEATURES | AHD CAMERA (1080P), FRONT VIEW CAMERA, REAR VIEW CAMERA, UNIVERSAL |
