BC UNI-FLAT AHD
KEETEC CAMERA REAR/FRONT VIEW
BC UNI-FLAT-AHD
I Rearview camera analog RCA

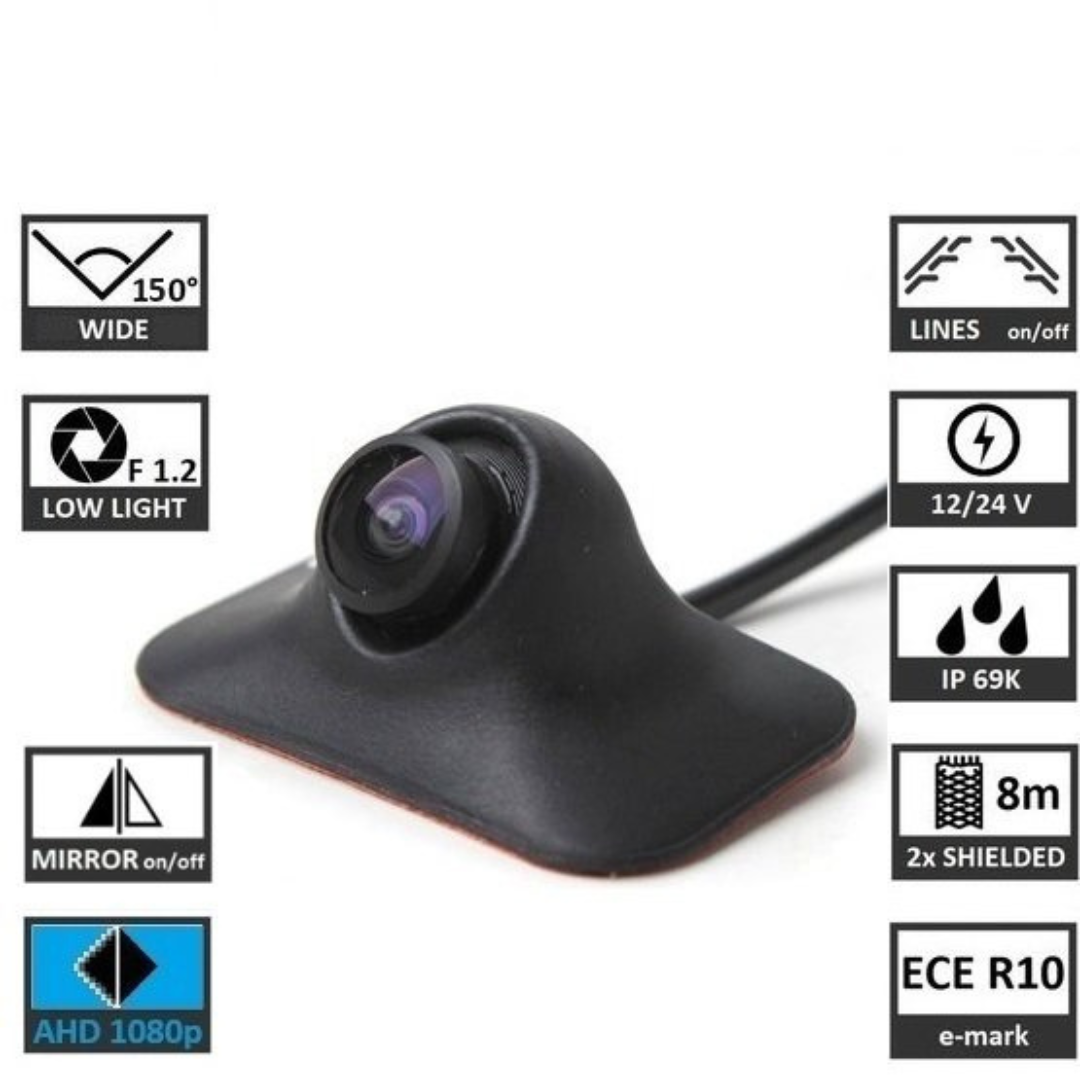

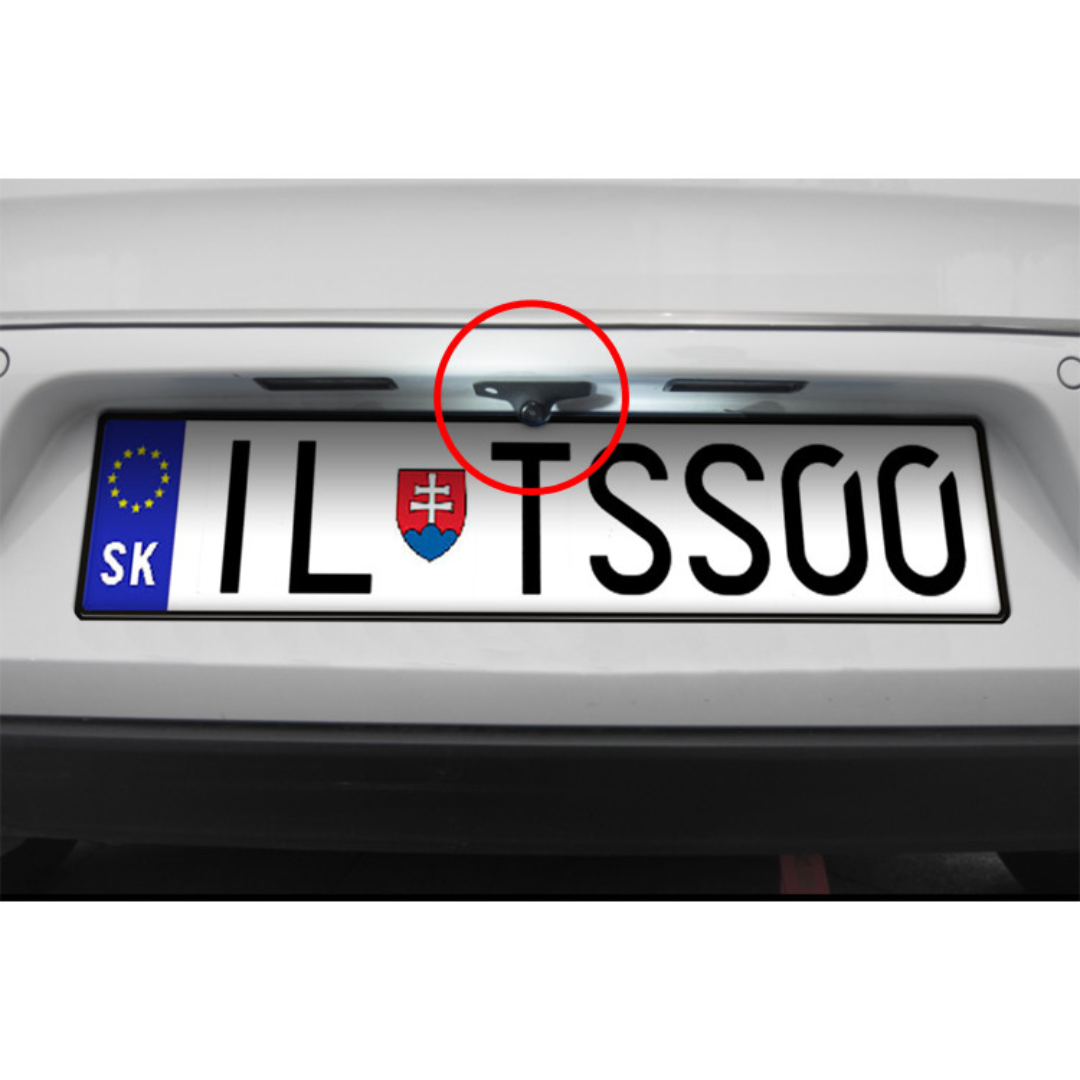

Universal parking camera, FullHD resolution 1080p – AHD signal, can be used as a front camera without guide lines or a parking camera, angle of view 150°, mounting on a flat surface using 3M tape. For connection, use an AHD compatible monitor (eg TFT5A2, TFT7HD2, TFT MIRROR7,…).
TECHNICAL PARAMETERS: |
|
| IMAGE SENSOR | 1/3″ LOW LIGHT HD CMOS SENSOR |
| SCANNING ANGLE | 150° HORIZONTAL |
| RESOLUTION | 1920 × 1080 (1080P) |
| SIGNAL TYPE | AHD |
| APERTURE | F1.2 |
| POWER SUPPLY | 12V / 24V |
| TV SYSTEM | NTSC |
| BLC | CAR BLC |
| WEATHER PROTECTION | IP69 |

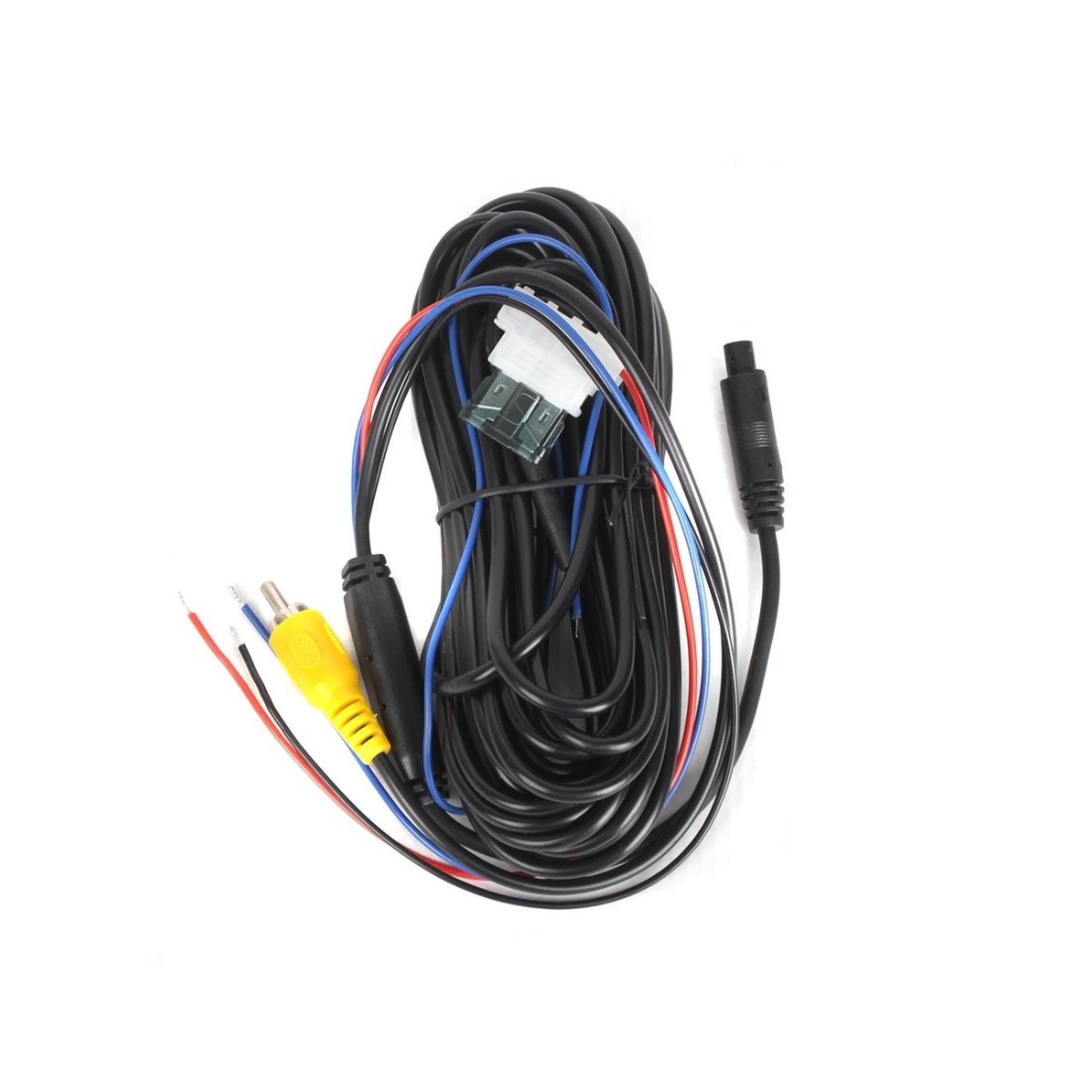

| CABLE | DOUBLE SHIELDING |
| CABLE LENGTH | 8 M |
| CONNECTOR | CINCH (RCA) |
| CONNECTOR SIZE | SLIM 5MM |
| POWER CONNECTION | REVERSE / IGNITION |
| WORKING TEMPERATURE | -20°C TO 75°C |
| CERTIFICATION | ECE R10 |

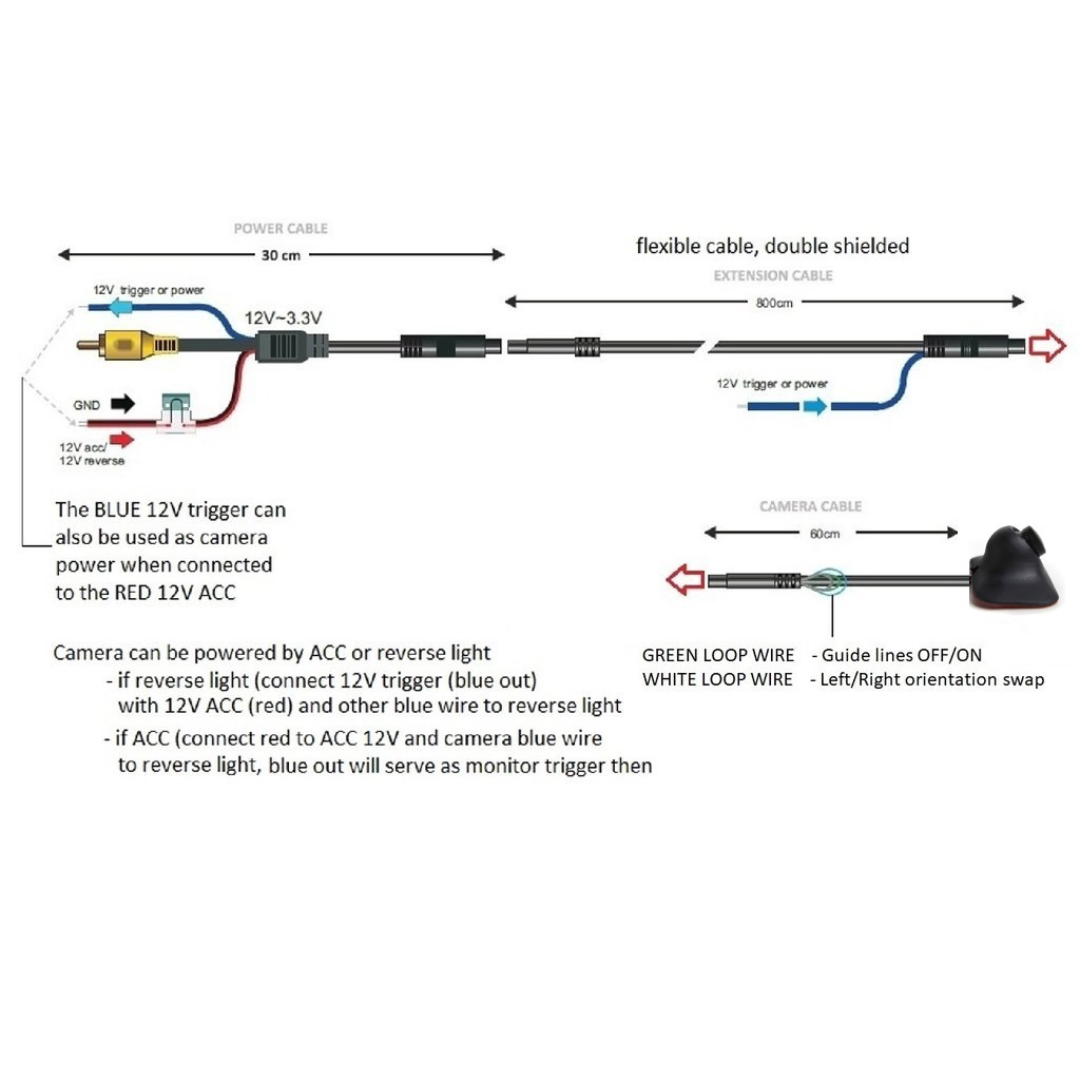

| GREEN LOOP | GUIDE LINES (DISAPPEAR AFTER CUTTING) |
| WHITE LOOP | IMAGE ORIENTATION (LEFT / RIGHT FLIP AFTER CUTTING) |
Note: The camera is intended for non-original (aftermarket) head units with RCA AV input. Use with the original head unbit would require the video adapter to be connected to the parking camera!
| BRAND | |
|---|---|
| FEATURES | AHD CAMERA (1080P), FRONT VIEW CAMERA, REAR VIEW CAMERA, UNIVERSAL |
