771000-6002

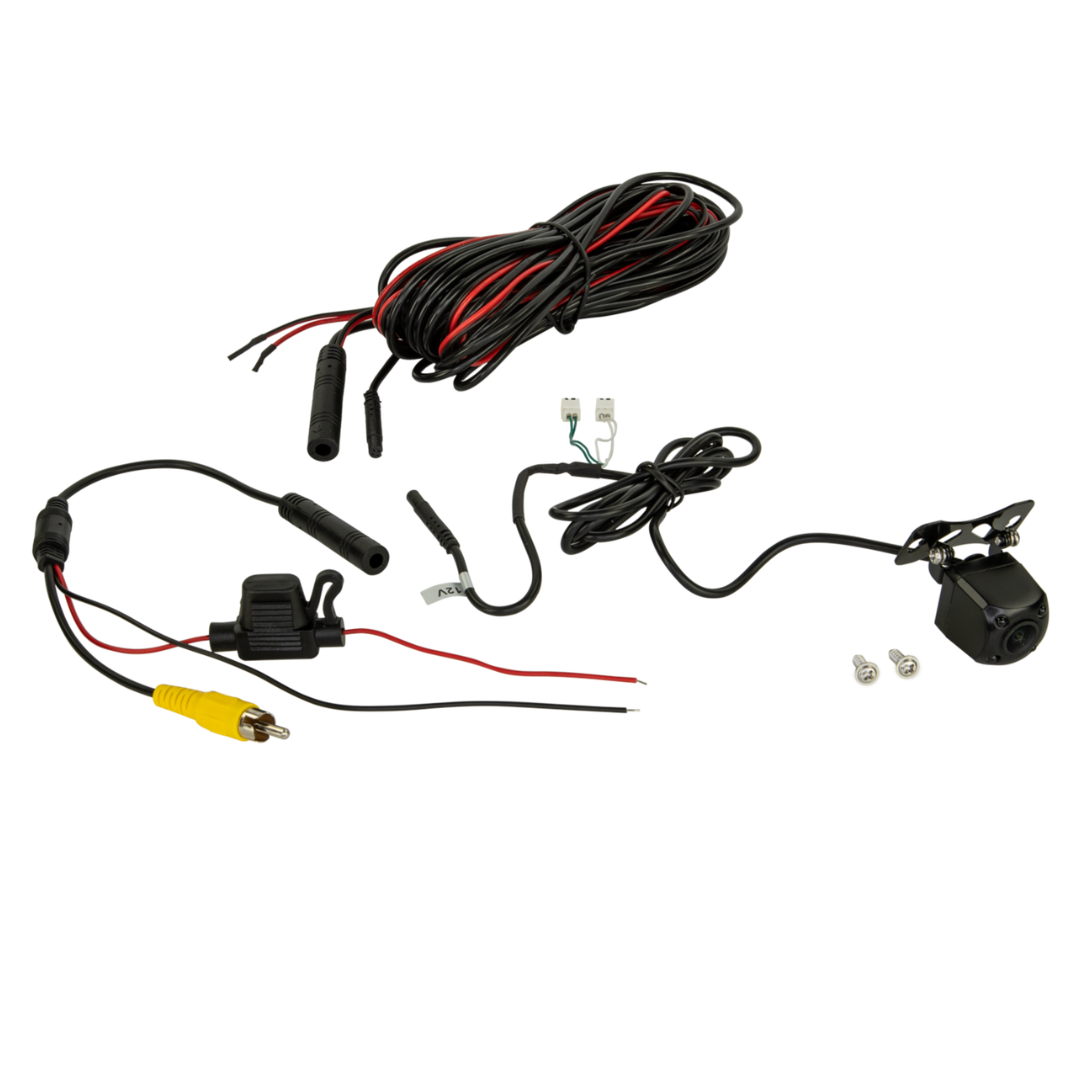

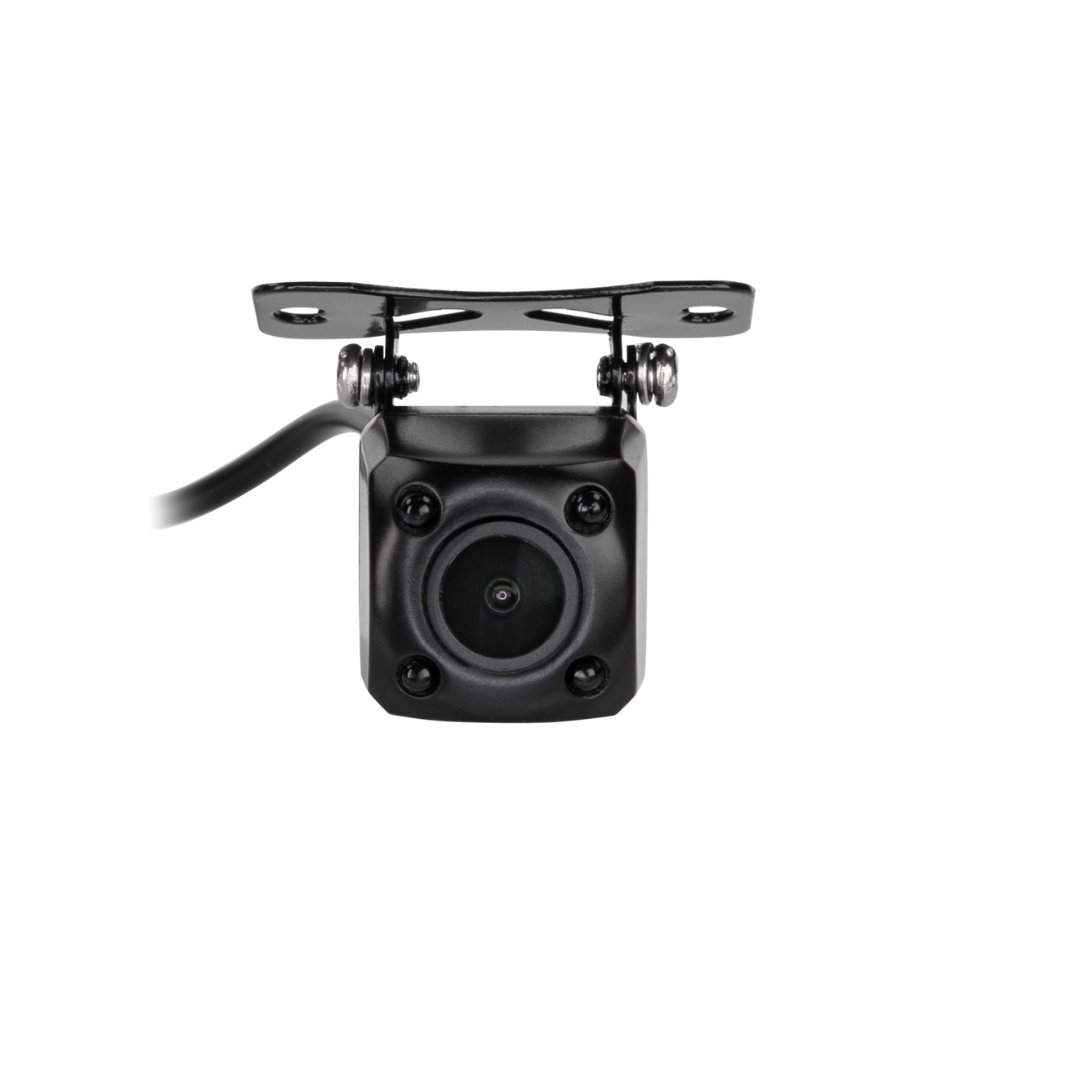

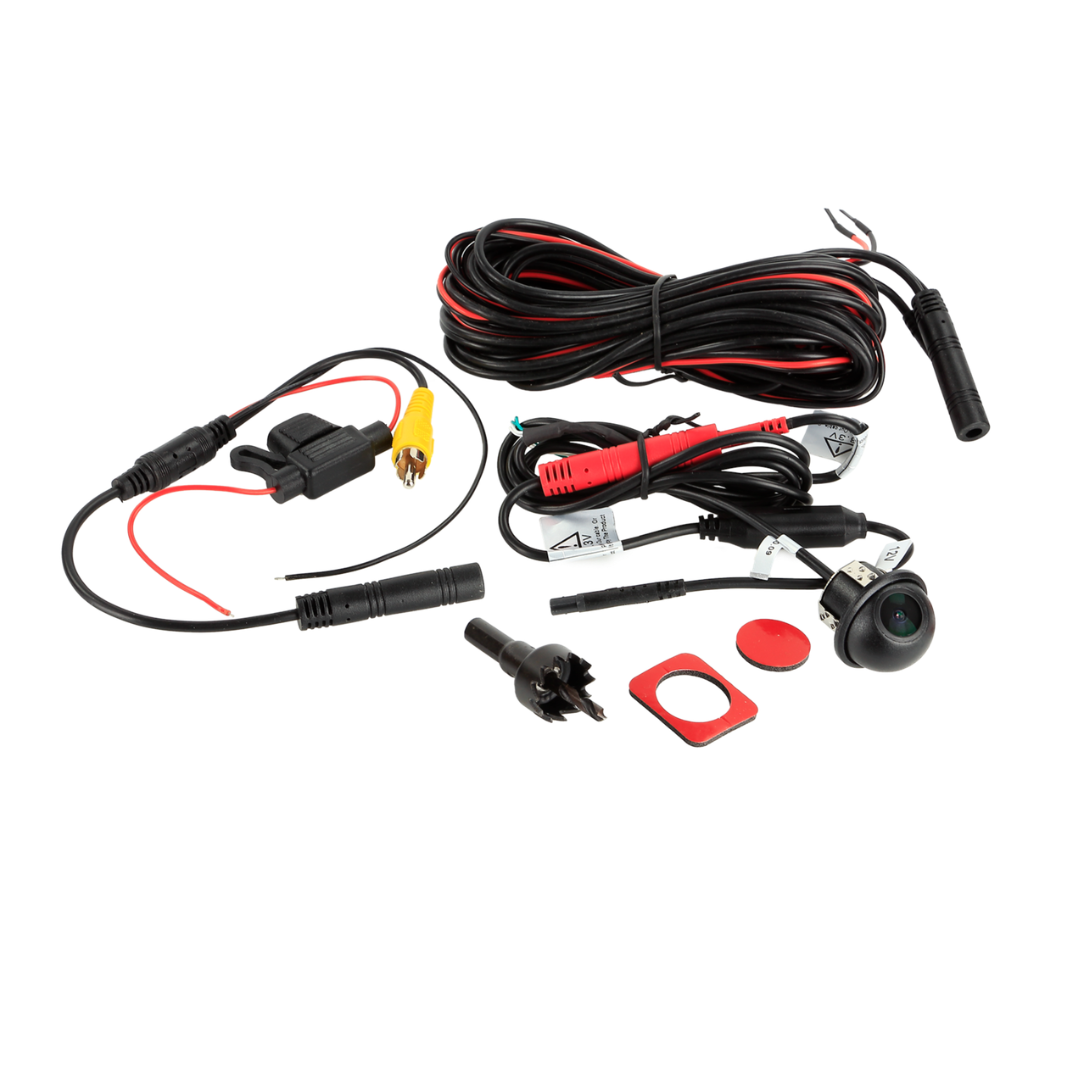

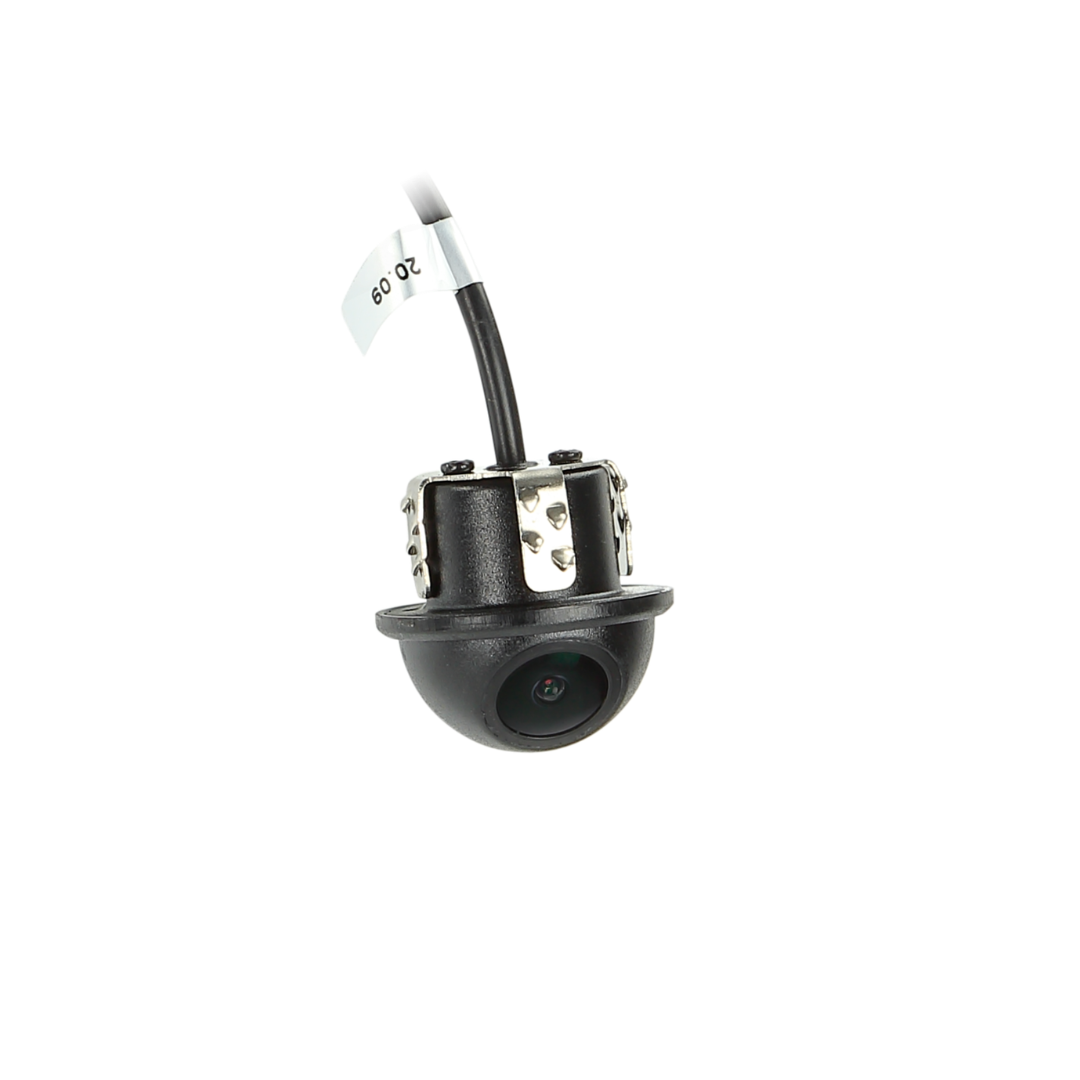

ACV Rear View Camera Under-Mount/Mount Mini Square
The universal round under-mount rearview camera is the ideal solution for automotive mechatronics looking for a reliable and versatile rearview camera for various vehicle types.
Advantages of the Rearview Camera
Compact Design: The mini square shape allows for discreet installation.
Universal Application: Suitable for under-mount or mount on various vehicles.
High Image Quality: Provides clear images to make reversing safer.
Easy Installation: Can be mounted quickly and easily.
This rear view camera is an indispensable tool for any automotive mechatronics who values safety and efficiency. It significantly improves visibility when reversing and minimizes the risk of accidents.
TECHNICAL PARAMETERS: |
|
| DESIGN | ROUND |
| MOUNTING TYPE | UNDER-MOUNT |
| COLOR | BLACK |
| CONSTRUCTION | PLASTIC WITH RETAINING CLIPS |
| DUST AND WATER PROTECTION | IP68 |
| OPERATING TEMPERATURE RANGE | -30°C – 75°C |
| STORAGE TEMPERATURE | -40°C – 85°C |
| DIMENSIONS | H 30MM / 17MM – 30.5MM |
| FUNCTIONS | WITH ORIENTATION LINES / MIRRORING FUNCTION |
| EXTRAS | ORIENTATION LINES VIA JUMPER / MIRRORING FUNCTION VIA JUMPER |
| JUMPER | GREEN: ACTIVATE/DEACTIVATE ORIENTATION LINES, WHITE: ACTIVATE/DEACTIVATE MIRRORING FUNCTION |
| CAMERA OPERATING VOLTAGE | +3V |
| CAMERA SUPPLY VOLTAGE | +12V / +24V |
| CURRENT CONSUMPTION | 200MA |
| SENSOR TYPE | 1/3″ CMOS |
| IMAGE SYSTEM | NTSC COLOR |
| EFFECTIVE PIXELS | 728 X 488 |
| LENS | 1.9MM / F 2.0 |
| LUX | 0.3 |
| RESOLUTION | 600 TV LINES |
| LENS ANGLE | DIAGONAL 170° |
| VIEWING ANGLE | HORIZONTAL 101° VERTICAL 77° +5° |
| CONNECTION | RED: +12V / +24V SWITCHED LOAD-STABLE SECURED, BLACK: DIRECT CHASSIS GROUND/GND, CINCH(M) YELLOW: VIDEO |
| CONNECTION | 4 PIN ACV SYSTEM CONNECTOR Ø5.2MM |
| CONNECTION CABLE AT THE CAMERA | 1M +/-: PIN ACV SYSTEM CONNECTOR(M) Ø5.2MM, 2 JUMPERS |
| VOLTAGE CONVERTER | +3V: 4 PIN ACV SYSTEM CONNECTOR(F) Ø10MM / 4 PIN ACV SYSTEM CONNECTOR(M) Ø5.2MM |
| EXTENSION | 6.5M +/-: 4 PIN ACV SYSTEM CONNECTOR(F) Ø10MM / 4 PIN ACV SYSTEM CONNECTOR(M) Ø5.2MM, POWER LINE RED 3M +/- WIRED THROUGH: CONNECTION TO CAMERA / CONNECTION REVERSE LIGHT TO MONITOR, GROUND LINE/GND BLACK 3M +/- WIRED THROUGH: CONNECTION CHASSIS GROUND/GND TO CAMERA / CONNECTION CHASSIS GROUND/GND DIRECTLY TO MONITOR |
| CONNECTION CABLE | 20CM +/-: 4 PIN ACV SYSTEM CONNECTOR(F) Ø10MM, RED: SUPPLY VOLTAGE, BLACK: GROUND/GND, CINCH(M) YELLOW: VIDEO |
| BRAND | |
|---|---|
| FEATURES | REAR VIEW CAMERA, UNIVERSAL |
