DMX-7525DABS
KENWOOD IN-DASH MONITOR 7″ USB/BT/CARPLAY/ANDROID AUTO
DMX-7525DABS
6.8” HD Screen Wireless/Wired CarPlay, Android Auto, Wireless iPhone/Android Mirroring, DAB+
KEY FEATURES |
6.8″ HIGH DEFINITION SCREEN WITH HIGH LUMINANCE LED BACKLIGHT AND SUPERIOR WIDE VIEWING ANGLES. WIRED & WIRELESS CARPLAY® & ANDROID AUTO™, THE IDEAL WAY TO USE YOUR SMARTPHONE IN THE CAR. WIRELESS & WIRED iPHONE & ANDROID SCREEN MIRRORING WITH CAR-EASYCONNECTION APP (TOUCH CONTROL VIA USB WIRED ANDROID ONLY). DAB+ DIGITAL RADIO TUNER FOR NOISE & INTERFERENCE FREE, CRYSTAL-CLEAR DIGITAL STEREO SOUND. BUILT-IN BLUETOOTH® HANDS-FREE CALLING & AUDIO STREAMING. HIGH SPEED USB TYPE-A TERMINAL FOR USB-ENABLED DEVICES (2.1A MAX). 13 BAND EQ & DIGITAL TIME ALIGNMENT TO OPTIMISE THE SOUND PERFORMANCE. 3 PREOUTS (3.0V) TO CUSTOMISE & UPGRADE YOUR AUDIO SYSTEM. REAR VIEW CAMERA INPUT WITH PARKING GUIDELINES, COMPATIBLE WITH HD CAMERA. 2DIN SHORT CHASSIS DESIGN FOR MORE FLEXIBLE INSTALLATION. |
 |

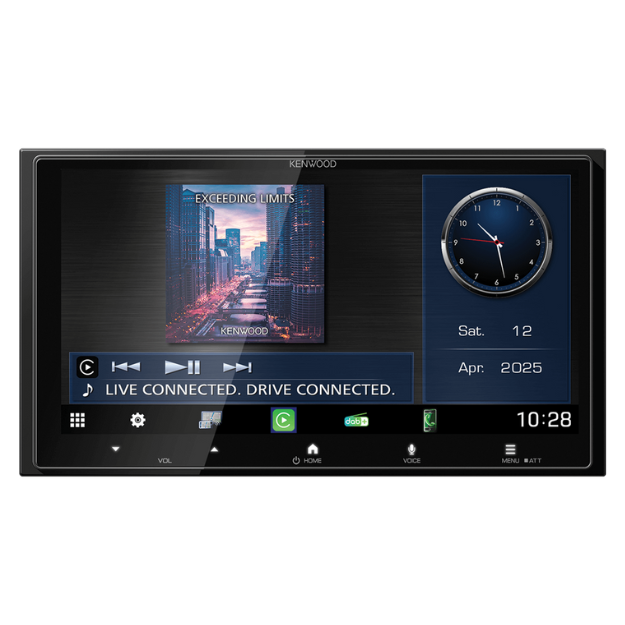

High Definition Display — Overwhelming Power of Expression —The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images. |

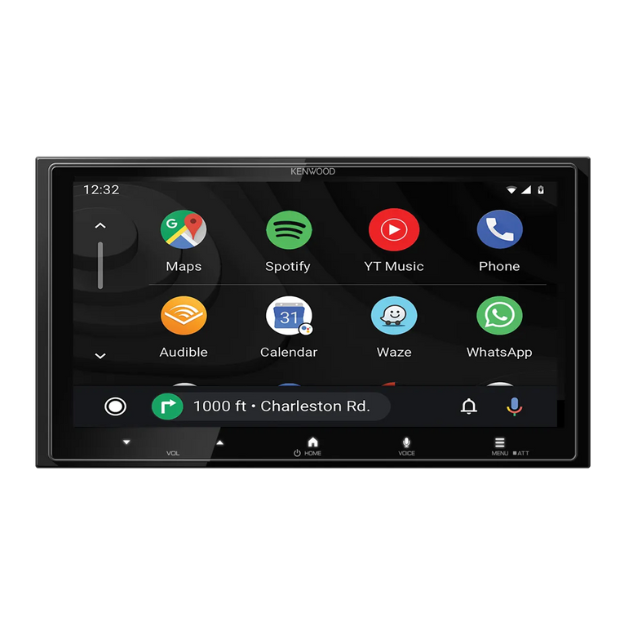

Android Auto™ – Connect Wirelessly or via USBAndroid Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it’s designed to minimize distraction so you can stay focused on the road. * Compatible Android phone and compatible active data plan required.  |
 |
 |

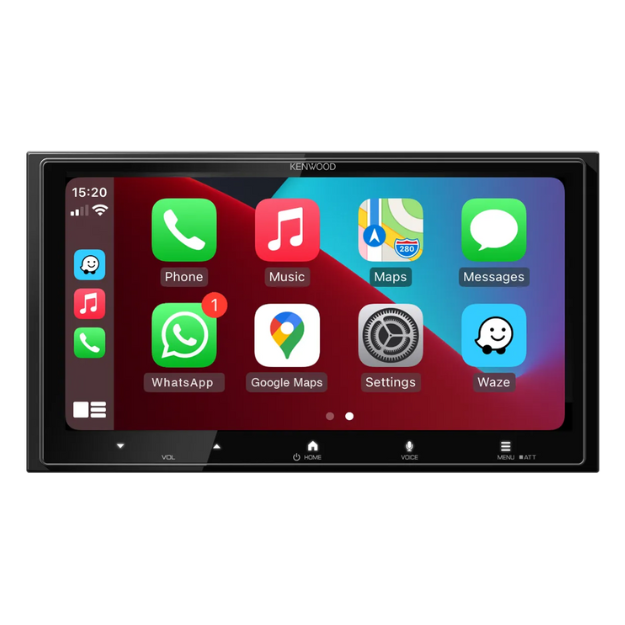

Apple CarPlay – Connect Wirelessly or via USBA smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. *Some features, applications, and services are not available in all areas.  |
Mirroring for Compatible SmartphonesBy installing the “EasyConnection”, your mobile phone is seamlessly displayed on the receiver’s large screen wired or wirelessly. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. (Touch control via USB wired Android only)
*Selected smartphones only    |
 |
 |
2-Camera InputsEnable users to add an optional rear view camera that enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness. Supports HD camera systems with 1280×720 pixel resolution, displaying the camera’s footage on the High Definition Screen. Adding a front camera (sold separately), further enhances driver safety and convenience by offering a clear view of the vehicle’s immediate front. *For Best Performance, use the KENWOOD CMOS-740HD(rear only), CMOS-320 or CMOS-230. |
| SPECIFICATIONS: | |
| GENERAL FEATURES | DIN SIZE: 2 DIN SMOOTH GUI: YES SELECTABLE GUI BACKGROUND WALLPAPER: YES KEY ILLUMINATION: WHITE COLOUR ATTENUATOR WITH SMOOTH VOLUME RETURN: YES TOUCH SENSOR TONE: YES OPTIONAL IR REMOTE CONTROLLER: YES (KNA-RCDV331) DIGITAL CLOCK (24H): YES BUILT-IN BLUETOOTH: YES DAB TUNER BUILT-IN: YES WIFI BUILT-IN: YES MADE FOR iPHONE: YES APPLE CARPLAY: WIRED & WIRELESS ANDROID AUTO: WIRED & WIRELESS SCREEN MIRRORING iOS & ANDROID: CARBITLINK-EASY CONNECTION FIRMWARE UPGRADEABLE: YES GYRO SENSOR BUILT-IN: YES |
| MONITOR FEATURES | SCREEN TYPE: 6.92″ HIGH DEFINITION DISPLAY TYPE: GLARE DISPLAY PANEL: CAPACITIVE DISPLAY FILM: ANTI FINGERPRINT LCD BACKLIGHT: WHITE LED DISPLAY MODE: FULL / AUTO / NORMAL SCREEN ADJUSTMENTS: COLOUR / CONTRAST / BACKLIGHT DIMMER FUNCTION: SYNC BY ILLUMINATION LINE DIMMER LEVEL: AUTO / ON / OFF VISUAL SOURCE MODE: MIRRORING / CARPLAY / ANDROID AUTO MECHANISM TYPE: FIXED NTSC / PAL JUDGE: YES (AUTO) DISPLAY OFF MODE: YES |
| MULTIMEDIA GUI FEATURES | OSDC TYPE: GRAPHIC MENU LANGUAGES: EN / ES / FR / DE / IT / NL / PT / AR / EL / PL / CZ / HU DEMONSTRATION MODE: YES TOP MENU CUSTOMIZE: YES OPENING SCREEN TYPE: KENWOOD WALLPAPER CUSTOMIZABLE: PRESET x4 R-CAM INTERRUPT: YES R-CAM PARKING GUIDE LINES: BUILT-IN, CUSTOMIZABLE |
| NETWORK & WIFI FEATURES | WIFI BUILT-IN: YES FREQUENCY RANGE: 5 GHz (5.745–5.825 GHz) WIRELESS APPLE CARPLAY: YES WIRELESS ANDROID AUTO: YES WIRELESS iPHONE & ANDROID MIRRORING: CARBITLINK |
| BLUETOOTH FEATURES | BLUETOOTH VERSION: V5.3 HANDS FREE PROFILE (HFP): V1.7 2 PHONES CONNECTION: YES AUDIO STREAMING: SBC / AAC VOICE CONTROL: YES NOISE & ECHO CANCELLER: YES MICROPHONE: INCLUDED (REAR WIRED) |
| AUDIO FEATURES | MAX OUTPUT POWER: 4 x 50W PRIMARY POWER OUTPUT: 4 x 22W PRE-OUT: 3 RCA (FRONT / REAR / SUB) PRE-OUT LEVEL: 3.0V DSP VOLUME CONTROL: YES BUILT-IN AMPLIFIER OFF: YES |
| MULTIMEDIA DSP FEATURES | GRAPHIC EQ: 13 BAND TIME ALIGNMENT: YES HPF / LPF / X-OVER: YES LOUDNESS / BASS BOOST: YES SPEAKER SIZE & POSITION CONTROL: YES |

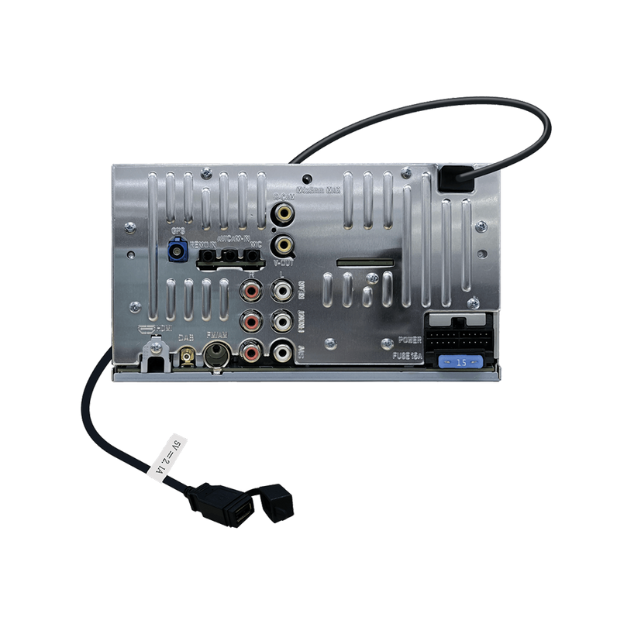

| CONNECTIVITY | USB TYPE: TYPE-A (2.0 HIGH SPEED) USB MAX CURRENT: 2.1A REAR VIEW CAMERA INPUT: DEDICATED RCA GPS ANTENNA: INCLUDED DAB ANTENNA INPUT: SMB EXTERNAL MICROPHONE INPUT: 3.5mm |
| GENERAL SPECIFICATIONS | OPERATING VOLTAGE: 14.4V (8.5–16V) MAX CURRENT CONSUMPTION: 15A DIMENSIONS (WxHxD): 178 x 100 x 109 mm WEIGHT: 1140 g |
| BRAND | |
|---|---|
| FEATURES | WIRELESS ANDROID AUTO, SCREEN MIRRORING FOR ANDROID, ANDROID AUTO, APPLE CARPLAY, WIRELESS APPLE CARPLAY, AUX, USB, BLUETOOTH |
| CAR AUDIO COLOUR | VARIABLE |
| PRE OUTS | 3 RCA (FRONT/REAR/SUB) |
