POWER AMPLIFIER 2*80W 4Ω / 2*130W 2Ω 1*260W 4Ω

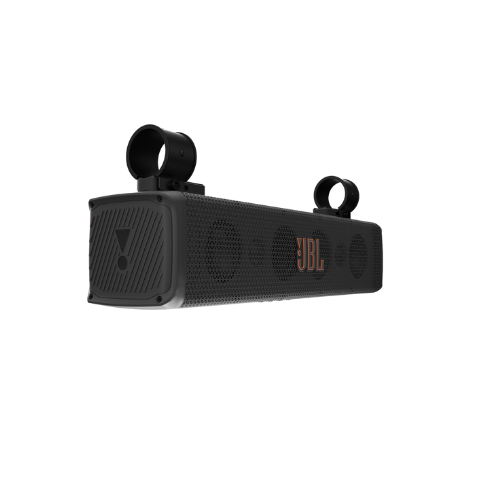

JBL RALLYBAR S is a IP66 rated water resistant Bluetooth® Soundbar with 150Wrms amplifier.
| FEATURES: | |
| TECHNICAL SPECIFICATIONS | TRANSDUCERS: 4 × 2.75”(70MM) WOOFERS, 2 × 1”(25MM) TWEETERS, 2 × 7.2”(182.8MM) × 3”(76.2MM) RACETRACK PASSIVE RADIATORS OUTPUT POWER: 150W RMS, 300W PEAK (IEC60268) THD AT RATED RMS POWER: < 1% VOLTAGE RANGE: 9.6 – 16VDC QUIESCENT CURRENT DRAW: < 0.9A MAXIMUM CURRENT DRAW: 25A FREQUENCY RESPONSE: 45HZ – 40KHZ SIGNAL-TO-NOISE RATIO: > 80 DB CABLE TYPE: 12 AWG CABLE LENGTH: 12 FEET (3.66M) BLUETOOTH VERSION: 5.3 BLUETOOTH PROFILE: A2DP V1.3, AVRCP V1.6 BLUETOOTH TRANSMITTER FREQUENCY RANGE: 2400 MHZ – 2483.5 MHZ BLUETOOTH TRANSMITTER POWER: ≤ 15 DBM (EIRP) AUX-IN: 2Vrms (0.35Vrms – 2Vrms), 4Vrms (0.7Vrms – 4Vrms), 6Vrms (1.05Vrms – 6Vrms) (3.5 MM CONNECTOR) AUX-OUT: 2 Vrms (3.5 MM CONNECTOR) USB FORMAT: FAT16, FAT32 SOUNDBAR DIMENSIONS (L × W × H): 21-5/32″ × 5″ × 4-5/8″ (537.5 × 126.7 × 118MM) SOUNDBAR WEIGHT: 11.46 LBS (5.2 KG) PACKAGING DIMENSIONS (W × H × D): 24″ × 9″ × 7.6″ (611 × 229 × 193MM) GROSS WEIGHT: 17 LBS (7.74 KG) |
| WHAT’S IN THE BOX | 1 × SOUNDBAR 2 × SECURITY CABLES 1 × SMALL WRENCH 1 × L-SMALL ALLEN WRENCH 1 × T-HANDLE HEX WRENCH 2 × STRAPS WITH VELCRO 1 × G-CLAMP 1 × KEYCHAIN 1 × 12FT (3.66M) POWER/GROUND WIRE HARNESS 2 × RUBBER TOP COVERS 2 × MOUNT CLEATS 2 × SHORT M8 SCREWS 2 × SHORT M5 SCREWS 2 × LONG M5 SCREWS 2 × M5 SCREW NUTS 4 × FLAT WASHERS 2 × C-CLAMPS (2”) 2 × C-CLAMPS (1.75”) 2 × THICK RUBBER STRIPS (FOR 1.5” POLE) 2 × THIN RUBBER STRIPS (FOR 2” & 1.75” POLE) 1 × QUICK START GUIDE 1 × SAFETY SHEET & WARRANTY CARD |
