MB100
THINKWARE VIDEO SPLITTER MODULE
MB 100
Thinkware MB100 Video Splitter Module 1-4

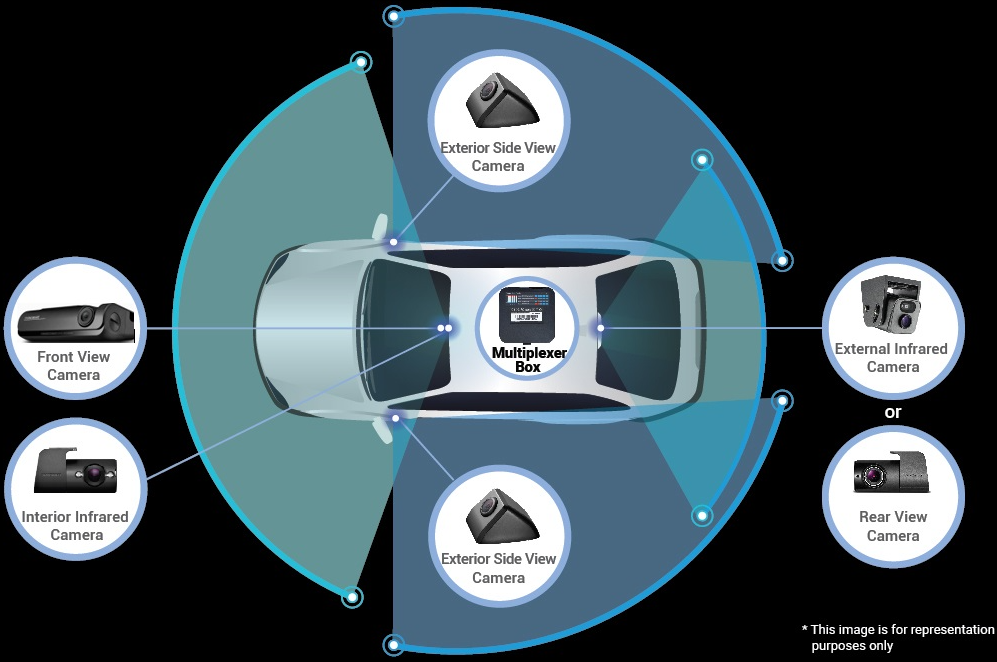

The MB100 video splitter allows to connect up to 4 additional cameras to the main camera (F200PRO or T700). You will get a record of what happened in the vehicle and its surroundings from a total of up to 5 lenses. Moreover, if you use the T700 as the main camera, you can have the live-view from all cameras remotely, wherever you are, even when the car is parked.
Split Display Setting:
TECHNICAL SPECIFICATIONS: |
|
| KEY | PIANO CODE SWITCH COMPOSITE SCREEN CAN BE CONFIGURED ACCORDING TO SWITCH COMBINATION |
| POWER SOURCE | 2 (BAT, GND) DC 12 V ~ 24 V CABLE LENGTH: 3 M |
| AV-IN (FOR OPTIONAL CAMERA CONNECTION) | 4 CABLES (CAM 1, CAM 2, CAM 3, CAM 4) 2.5 PI STEREO-JACK TYPE AFHD CABLE LENGTH TO CONNECTING CONNECTOR: 15 CM |
| RECORDING CHANNEL | UP TO 4 ANALOG FULL HD CAMERAS CAN BE INPUT (TOTAL 5CH) |
| COMPOSITE VIDEO | FULL HD (1920 X 1080) @ 30FPS |
| DIMENSIONS (WXDXH) | 65 X 65 X 17.5 MM (2.56 X 2.56 X 0.69 INCH) |
| OPERATING TEMPERATURE | -10°~ 60°C (14°~ 140°F) |
| IN THE PACKAGE | MB100 VIDEO SPLITTER
MAIN WIRING 4 X INPUT FOR ADDITIONAL CAMERA (JACK 2.5 MM) 1 X INPUT TO MB100 (WHITE CONNECTOR) 1 X POWER CABLE (2.5 METERS – FREE WIRES BAT, GND) 1 X OUTPUT FOR THE MAIN CAMERA (JACK 2.5 MM) VIDEO CABLE (CONNECTION MB100 / MAIN CAMERA) LENGTH 3 M CONNECTORS 2X JACK 2.5 MM |
| NOTE | THE SPLITTER BOX CAN ONLY BE USED AS AN ADD-ON ACCESSORY TO A COMPATIBLE THINKWARE DASH CAM. THE MULTIPLEXER BUNDLE BY ITSELF CANNOT BE USED TO RECORD DRIVING FOOTAGE. |
| BRAND | |
|---|---|
| FEATURES | VIDEO SPLITTER MODULE |
