KEETEC REAR VIEW CAMERA – MERCEDES E-C-CL-CLS CLASS
BC MCD-02
I Rearview camera Mercedes

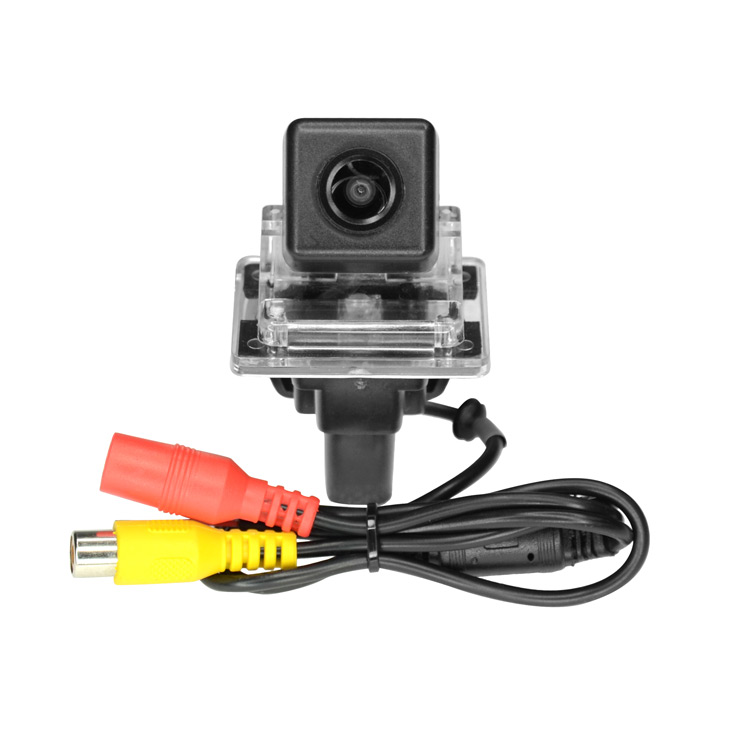

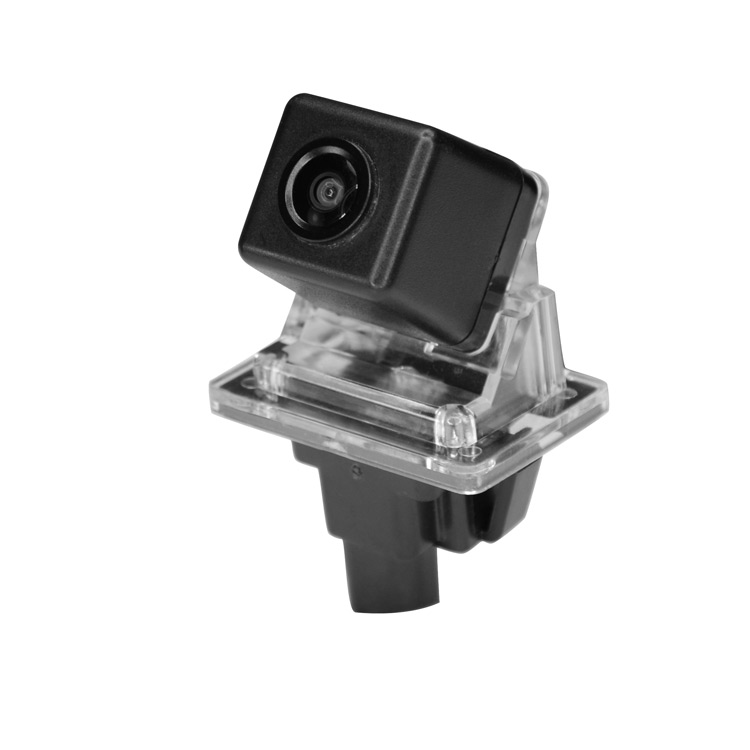

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.
TECHNICAL PARAMETERS: |
|
| IMAGE SENSOR | PC3089 1/3″ |
| GUIDE LINES | ENABLE / DISABLE OPTION |
| ELECTRONIC APERTURE | 1/60 – 1/10000 SEC. |
| MINIMUM ILLUMINATION | 0.1 LUX |
| SIGNAL / NOISE RATIO | > 48 DB |
| TV SYSTEM | NTSC (SUPPORTED BY EACH MONITOR / HEAD UNIT) |
| TV LINES | 600 TVL |
| EFFECTIVE PIXELS | 668 × 576 |
| WEATHER PROTECTION | IP67 |
| VIEWING ANGLE | 170° |
| CAMERA BODY | DURABLE PLASTICS “PRIVATE HOUSING” |
| IMAGE DISPLAY | MIRROR |
| OPERATING TEMPERATURE | -30 °C TO +70 °C |
| AGC / BLC / WHITE BALANCE | AUTOMATIC |
| SIGNAL CABLE | 6.2 M WITH CINCH / RCA |
| VIDEO OUTPUT | 1.0V / 75 OHM |
| POWER CABLE | 1 M |
| POWER SUPPLY | 12V DC |
| CONSUMPTION | < 1W |
| CAMERA DIMENSIONS: | |
| BASE | 34 × 44 MM |
| MOUNTING SPACING | 33 MM |
SUITABLE FOR: |
MERCEDES E-CLASS [W212] (2009-2011) MERCEDES C-CLASS [W204] (2008-2011) MERCEDES CL-CLASS [W216] (2007-2011) MERCEDES CLS |
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
