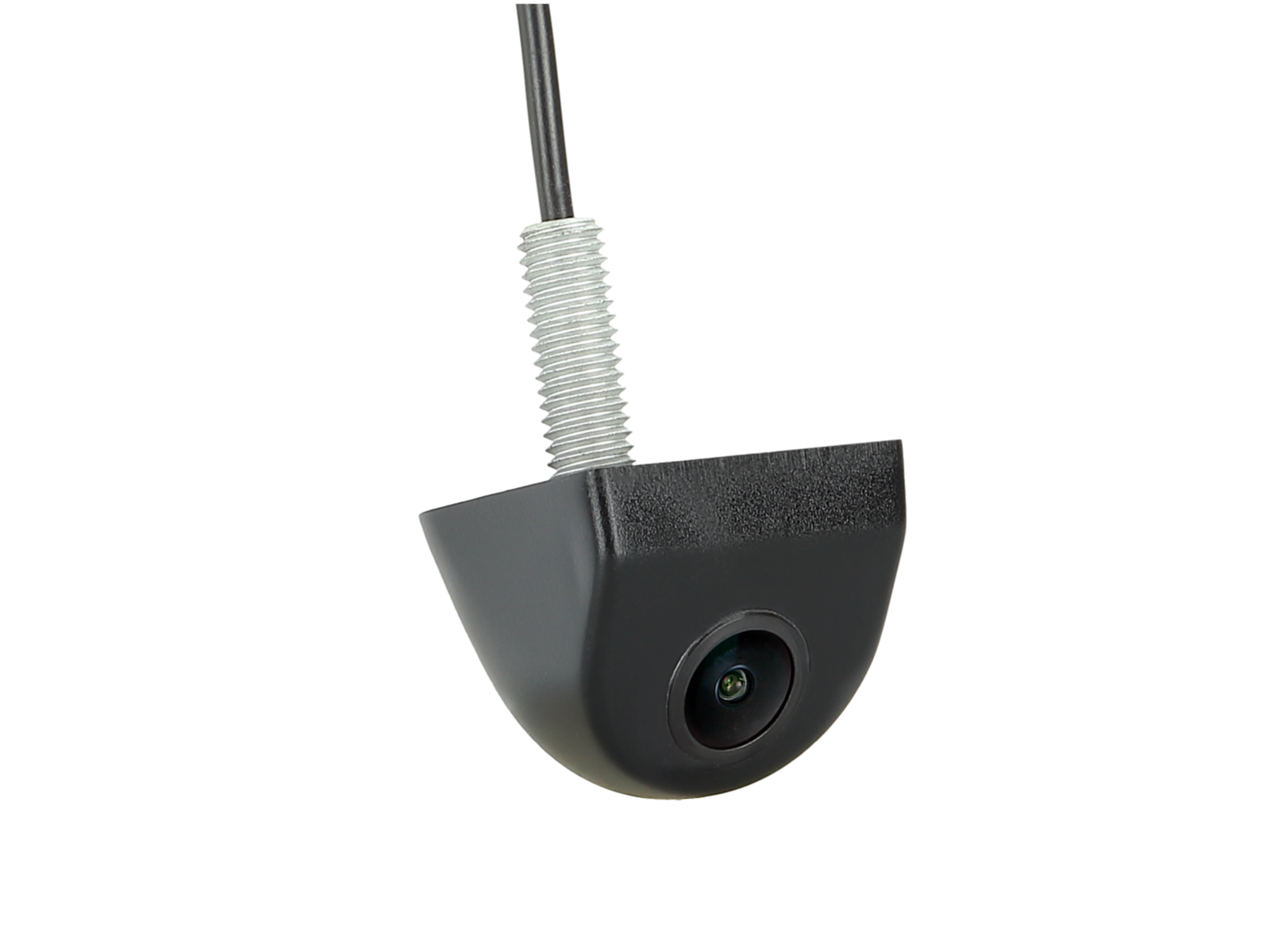

ACV Rear view camera sub-construction foursquared
The universal rearview camera is a versatile solution for all vehicle types. With its square design and underbody mounting style, it offers easy installation and reliable performance.Universal Compatibility: Suitable for various vehicle models and types.
Robust Design: The square design ensures stability and durability.
Technical Details
The camera is specifically designed for use in different environments and provides clear visibility in all weather conditions.The universal rearview camera is the ideal choice for automotive mechatronics technicians looking for a reliable and easy-to-install solution. It combines functionality with a robust design, making it perfect for professional use.
Setup of a camera system with front view camera / rear view camera
Integration of a front view camera into an existing camera system
TECHNICAL PARAMETERS: |
|
| SENSOR TYPE | 1/3″ CMOS |
| IMAGE SYSTEM | NTSC COLOR |
| EFFECTIVE PIXELS | 728 X 488 |
| RESOLUTION | 600 TV LINES |
| LENS | 1.9MM / F2.0 |
| LIGHT SENSITIVITY | 0.3 LUX |
| LENS ANGLE | DIAGONAL 170° |
| VIEWING ANGLE | HORIZONTAL 103° / VERTICAL 78° (+5°) |
| DUST & WATER PROTECTION | IP68 |
| COLOR | BLACK |
| CONSTRUCTION | PLASTIC WITH 8MM THREADED TUBE CABLE GUIDE |
| DIMENSIONS | 34.5MM / 33MM / 27.57MM |
| OPERATING VOLTAGE | +3V DC |
| SUPPLY VOLTAGE | +12V / +24V DC (WITH CONVERTER) |
| CURRENT CONSUMPTION | 200MA |
| OPERATING TEMPERATURE | -30°C TO 75°C |
| STORAGE TEMPERATURE | -40°C TO 85°C |
| CONNECTION | 4 PIN ACV-SYSTEM CONNECTOR (Ø5.2MM) |

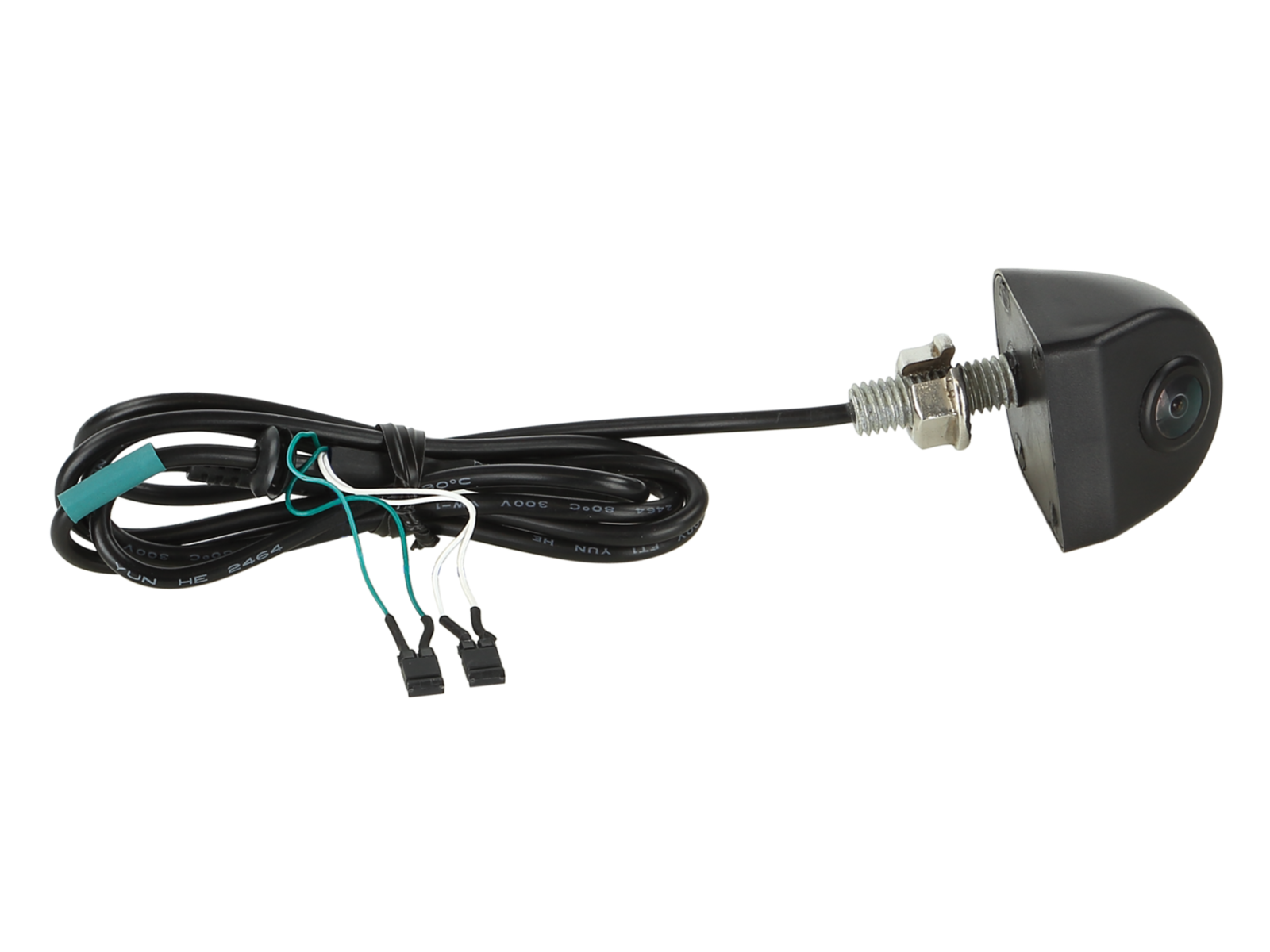

| CAMERA CABLE | 1M ± WITH 4 PIN CONNECTOR + 2 JUMPERS |
| VOLTAGE CONVERTER | +3V CONVERTER (Ø10MM / Ø5.2MM) |
| EXTENSION | 6.5M ± WITH POWER & GROUND WIRING |
| SHORT CABLE | 20CM ± (POWER, GROUND, RCA VIDEO) |
| JUMPERS | GREEN: GUIDELINES / WHITE: MIRRORING |
| EXTRAS | ORIENTATION LINES VIA JUMPER / MIRRORING FUNCTION VIA JUMPER |
| BRAND | |
|---|---|
| FEATURES | FRONT VIEW CAMERA, REAR VIEW CAMERA, UNIVERSAL |
