BC VW-07
KEETEC CAMERA REAR VIEW – VOLKSWAGEN CRAFTER / MERCEDES SPRINTER
BC VW-07

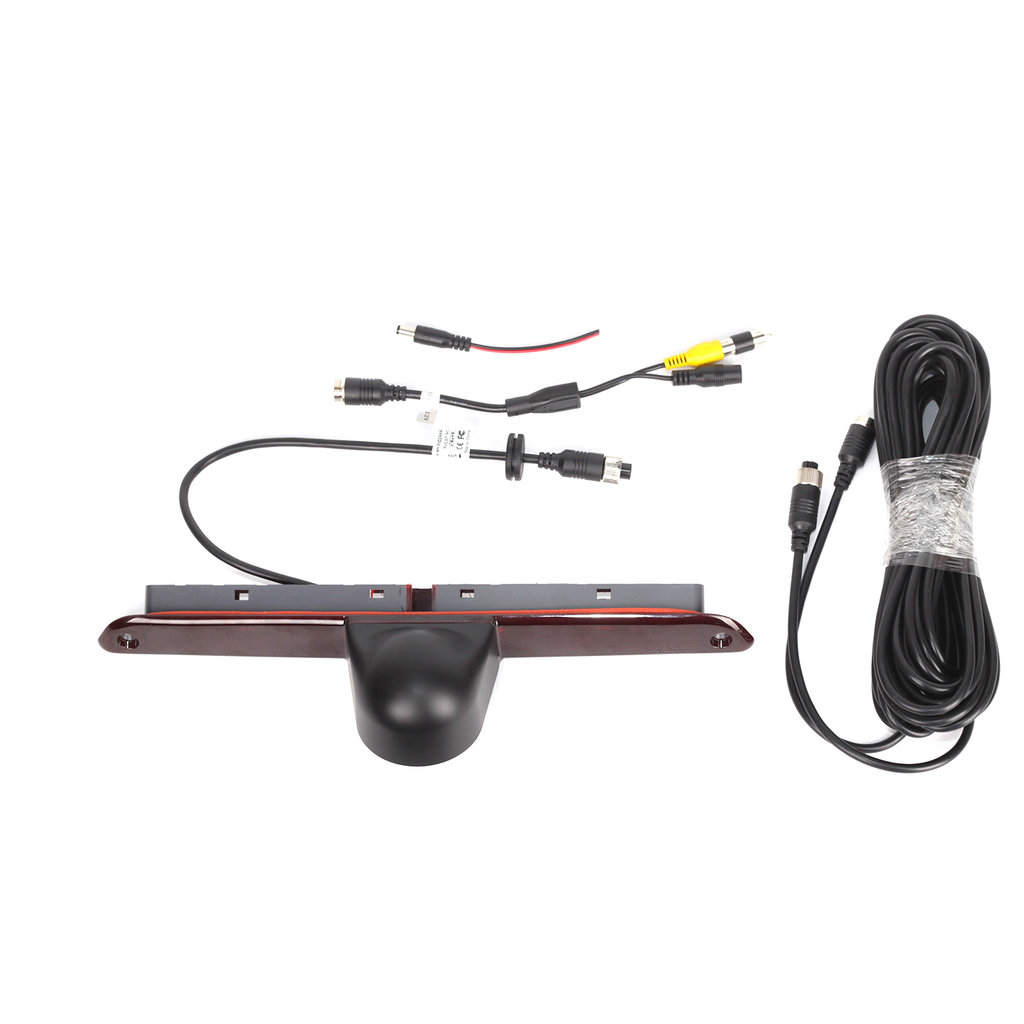

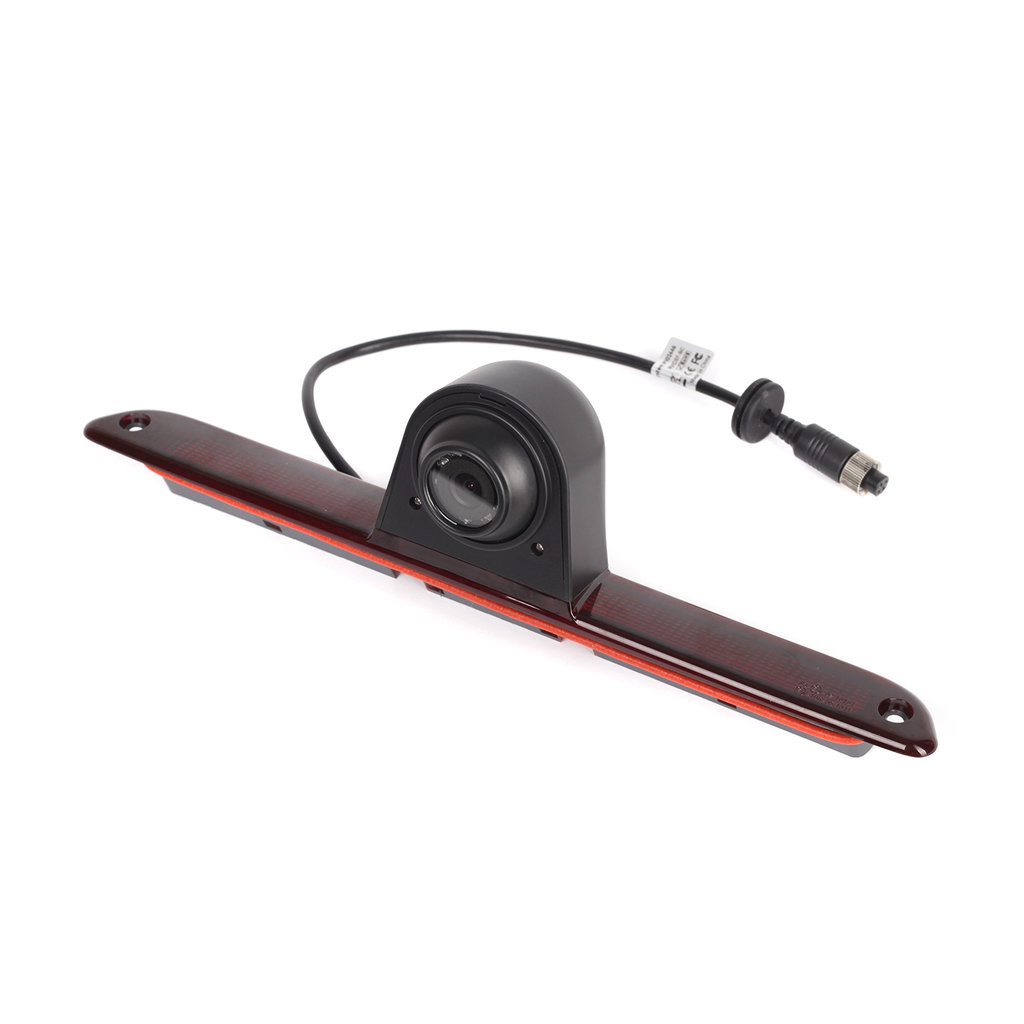

CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Mercedes and VW vans.
TECHNICAL PARAMETERS: |
|
| IMAGE SENSOR | SHARP CCD 1/4″ SENSOR CHIP |
| IR LEDS | 6 PCS |
| LENS DIAMETER | 14 MM |
| ELECTRONIC SHUTTER | 1/50 – 1/10000 SEC. |
| MINIMUM ILLUMINATION | 0.1 LUX |
| SIGNAL / NOISE RATIO | > 48 DB |
| TV SYSTEM | NTSC |
| TV LINES | 420 TVL |
| PROTECTION | IP68 |
| VIEWING ANGLE | 170° |
| VIDEO OUTPUT | 1.0V / 75OHM |
| WHITE BALANCE | AUTO |
| WORKING TEMPERATURE | -30 °C TO +70 °C |
| CAMERA CABLE | APPROX. 80 CM (POWER & SIGNAL) |
| SIGNAL CABLE | 10 M WITH RCA (CINCH) |
| POWER CABLE | 1 M |
| CAMERA DIMENSIONS: | |
| BASE | 35 × 340 MM |
| SCREW SPACING | 307 MM |
| SUITABLE FOR: | |
| MERCEDES | SPRINTER [W906] (2006-2017) |
| MERCEDES | SPRINTER [W907, W910] (2018-) |
| VW | CRAFTER (04/2006-2017) |
| BRAND | |
|---|---|
| FEATURES | BRAKE LIGHT CAMERAS, REAR VIEW CAMERA |
| CAR SPECIFIC KITS | MERCEDES, VOLKSWAGEN |
