BC PGT-BOXER
KEETEC REAR VIEW CAMERA – FIAT DUCATO / PEUGEOT BOXER / CITROEN JUMPER / OPEL MOVANO
BC PGT-BOXER

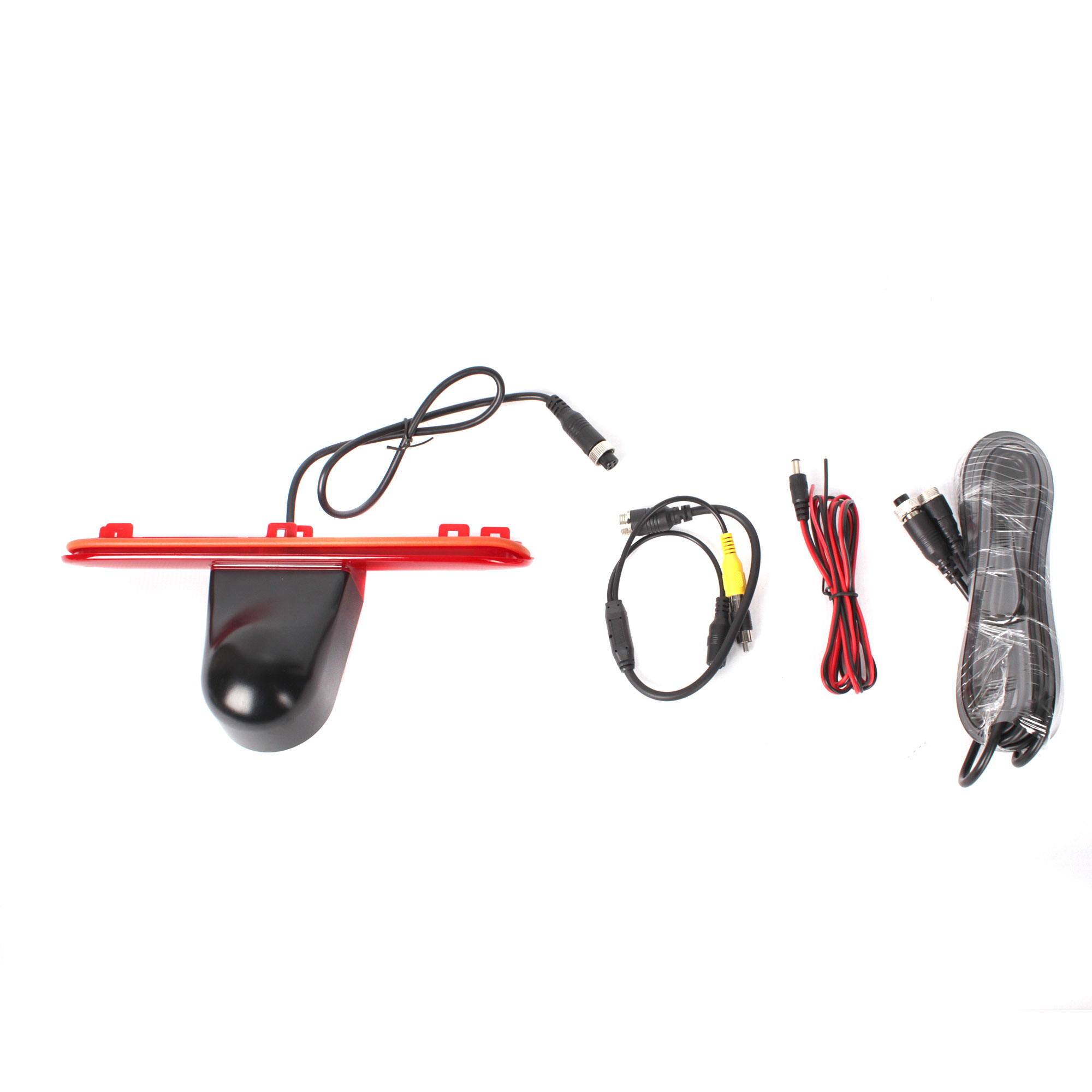

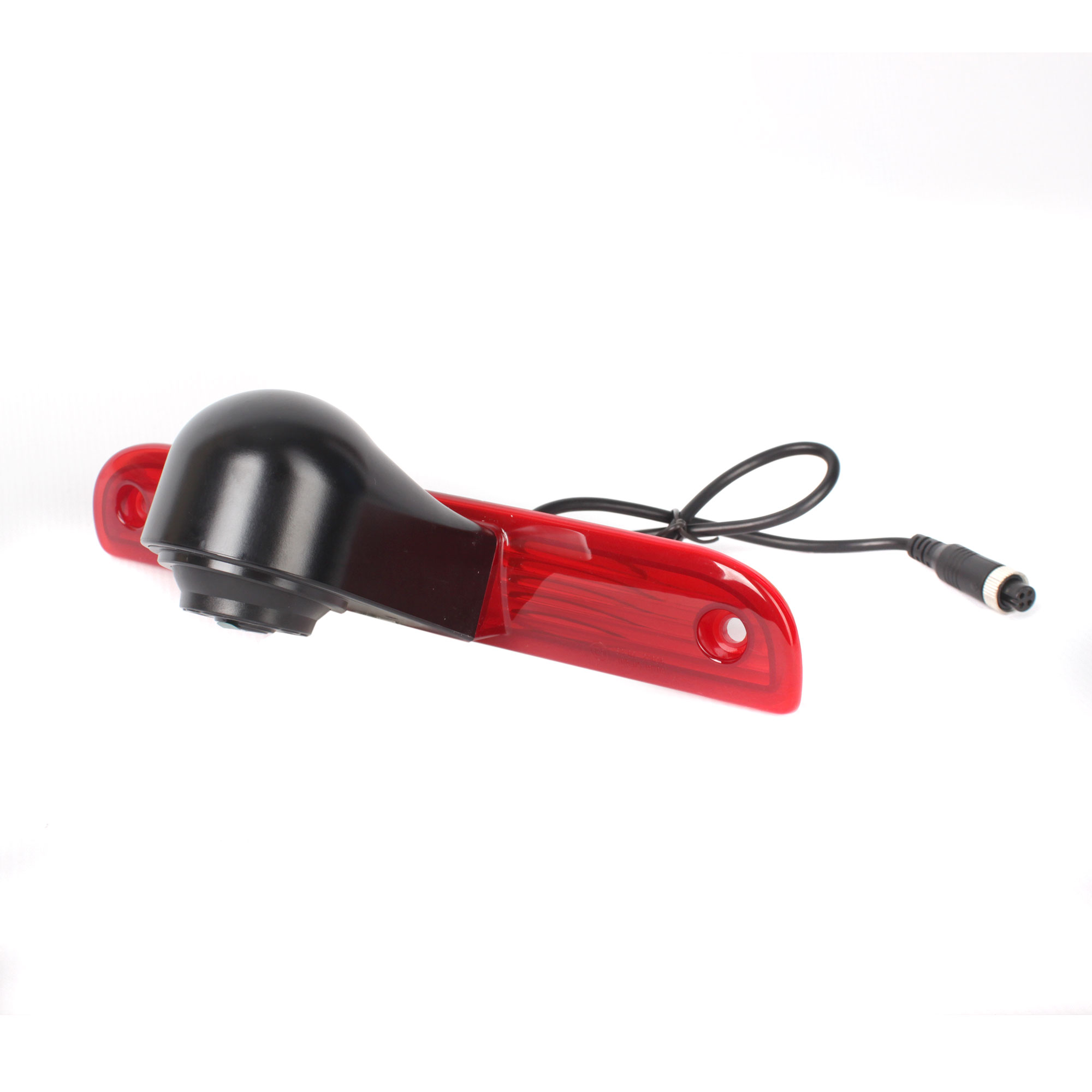

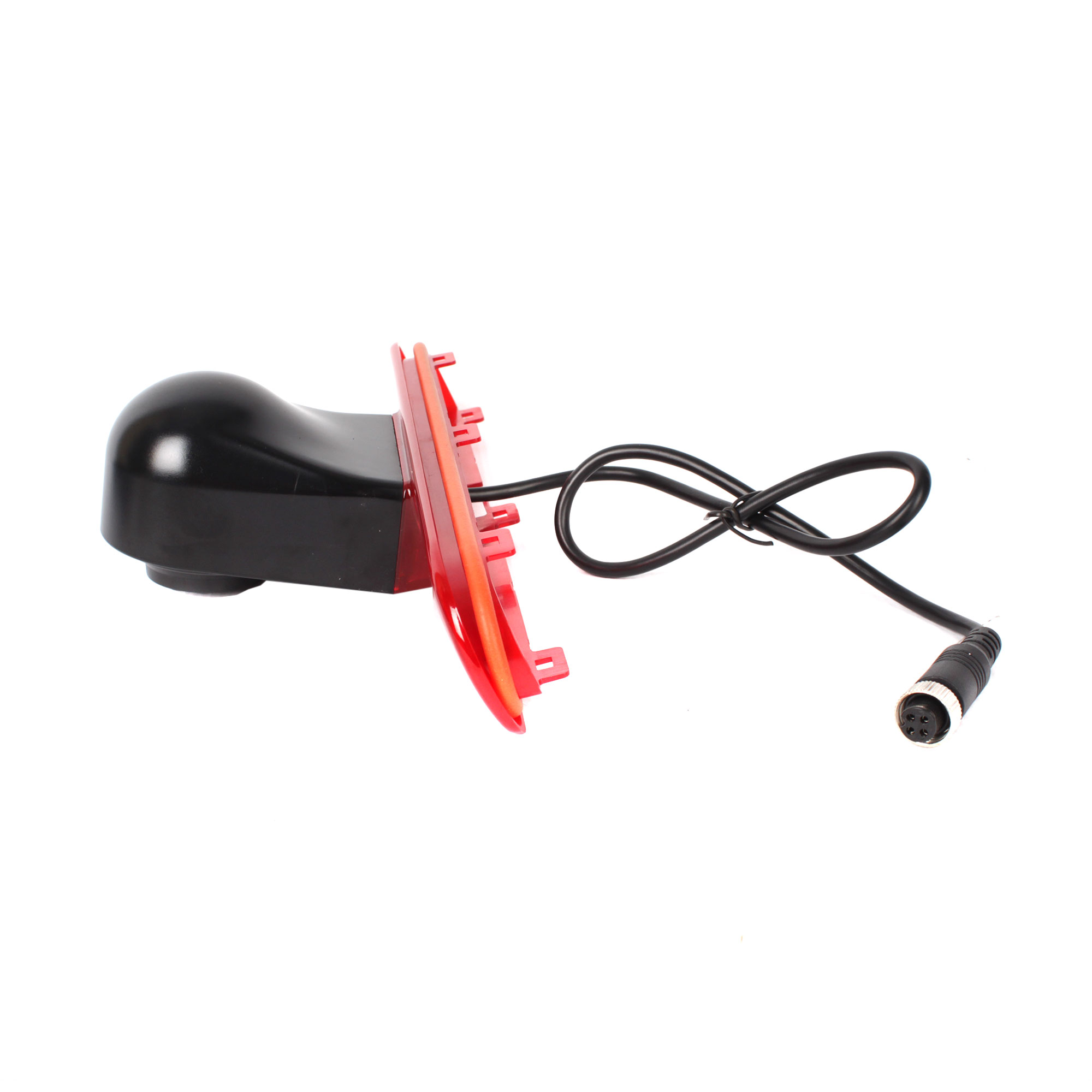

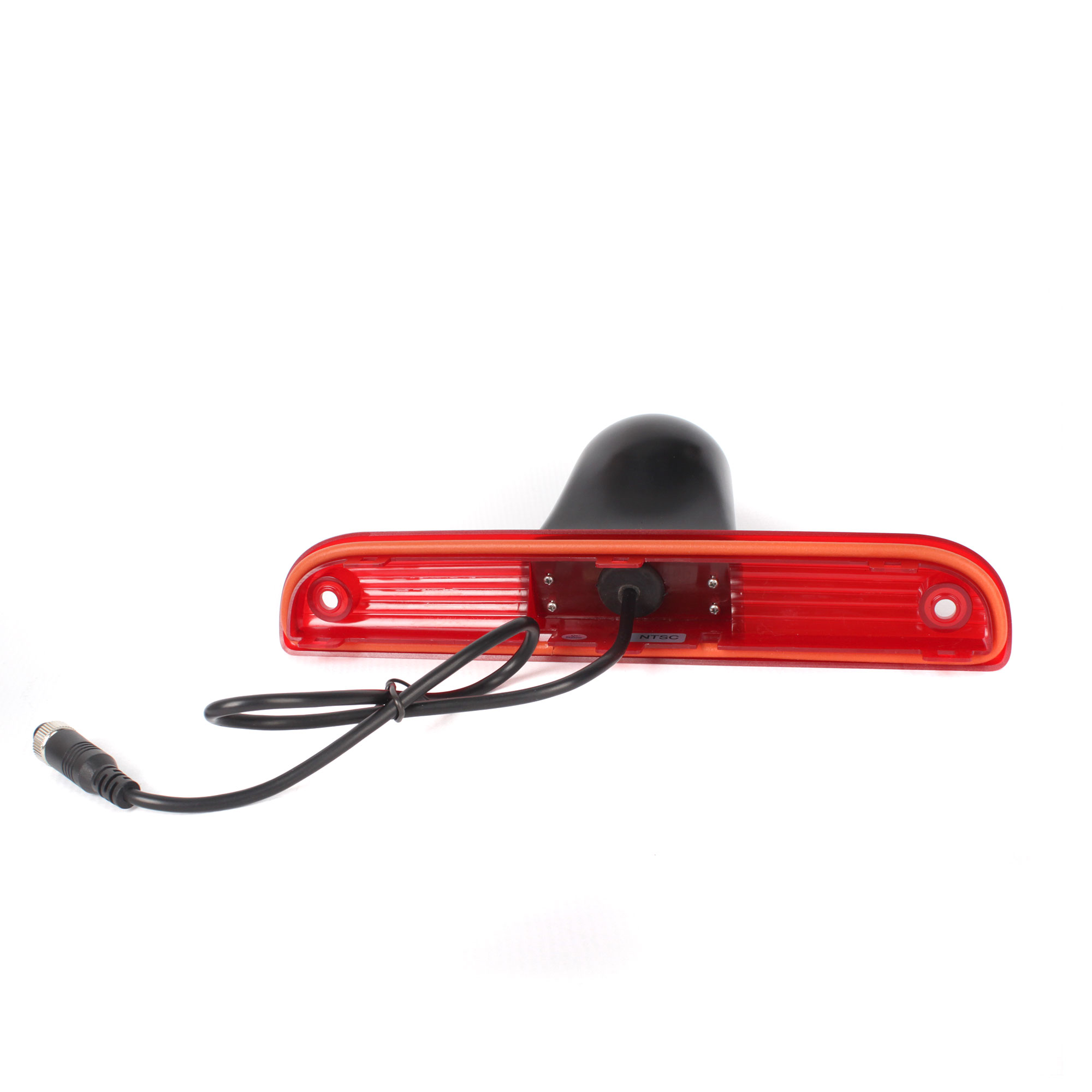

OEM color rearview camera integrated in the central brake light cover glass for Jumper, Boxer, Ducato (06-) cars.
TECHNICAL PARAMETERS: |
|
| IMAGE SENSOR | SHARP CCD 1/4″ SENSOR CHIP |
| LENS DIAMETER | 14 MM |
| ELECTRONIC SHUTTER | 1/50 – 1/10000 SEC. |
| MINIMUM ILLUMINATION | 0.1 LUX |
| SIGNAL / NOISE RATIO | > 48 DB |
| TV SYSTEM | NTSC |
| TV LINES | 420 TVL |
| PROTECTION | IP68 |
| VIEWING ANGLE | 170° |
| VIDEO OUTPUT | 1.0V / 75OHM |
| WHITE BALANCE | AUTO |
| WORKING TEMPERATURE | -30 °C TO +70 °C |
| CAMERA CABLE | APPROX. 80 CM (POWER & SIGNAL) |
| SIGNAL CABLE | 10 M WITH RCA (CINCH) |
| POWER CABLE | 1 M |
| CAMERA DIMENSIONS: | |
| BASE | 46 × 263 MM |
| SCREW SPACING | 220 MM |
| SUITABLE FOR: | |
| FIAT | DUCATO (2006-2014) |
| FIAT | DUCATO [X250] [X290] (2014->) |
| PEUGEOT | BOXER (2006-2014) |
| PEUGEOT | BOXER (2015->) |
| CITROEN | JUMPER (2006-2014) |
| CITROEN | JUMPER (2015->) |
| OPEL | MOVANO (2021->) (*CHECK SCREW SHAPE & SPACING) |
| BRAND | |
|---|---|
| CAR SPECIFIC KITS | CITROEN, FIAT, OPEL, PEUGEOT |
| FEATURES | BRAKE LIGHT CAMERAS, REAR VIEW CAMERA |
