INE-AW409S
ALPINE IN-DASH MONITOR 9″ USB/BT/CARPLAY/ANDROID AUTO/ANDROID SYSTEM 4GB+64GB
Bring modern connectivity and a clean, large-format user interface to your dashboard with the INE-AW409S . Its laminated 9-inch HD touchscreen delivers sharp, vibrant images at a resolution of 1280 x 720 pixels , while intuitive operation via tap, drag, swipe, and pinch feels natural in everyday use. Android 13 , a Cortex-A35 processor, 4 GB of RAM , and 64 GB of internal storage provide a flexible platform for entertainment, navigation, and communication.
Stay connected your way with built-in Wi-Fi , broadband Bluetooth 5.0 , Apple CarPlay , and Android Auto . Two rear USB ports let you conveniently play music and videos, install firmware updates, charge a device, or connect a USB drive. The customizable home screen, access to the Google Play Store, and menus in 22 languages allow you to personalize the experience to your liking.
The INE-AW409S is also designed for flexible vehicle integration. AHD and composite camera inputs, an AUX input, a learning function for steering wheel remote controls, and GPS and antenna connections support a wide range of installations. Sound is delivered by an integrated amplifier with up to 4 x 50 W , a front preamp output, a 3-band equalizer, five EQ presets, and fader and balance controls for easy customization to your vehicle and listening preferences.
 |
Clear 9-inch view on every driveEnjoy a spacious and intuitive user interface on the laminated 9-inch touchscreen . With a crisp HD resolution of 1280 x 720 pixels and smooth operation via tap, drag, swipe, and pinch-to-zoom, maps, media, and menus can be easily viewed and controlled. The platform, featuring Android 13 , a Cortex-A35 processor, 4 GB of RAM , and 64 GB of internal storage, provides the foundation for a flexible driving experience. The customizable home screen, 22 menu languages, and access to the Google Play Store allow for personalized setup. |
 |
Your apps, your entertainmentAccess navigation, music, videos, and entertainment directly through the INE-AW409S while stationary. A selection of pre-installed applications provides useful features right from the start, while additional apps can be added via USB to create an infotainment experience that suits your travel style. |
 |
Two USB ports, more flexibilityKeep your media and devices connected with two rear USB ports. One port supports high-speed data transfer, firmware updates, and audio and video playback; the second provides a convenient connection for charging or a USB flash drive. Support for popular formats like FLAC, AAC, H.264/AVC, H.265/HEVC, and MKV makes it easy to take your entertainment with you.
|
 |
Continue using familiar steering wheel buttonsThe screen-based learning function for the steering wheel remote control allows compatible vehicle buttons to be assigned directly in the system menu. This ensures that important functions can still be conveniently operated via the steering wheel; depending on the vehicle, an optional adapter may be required. |
 |
Practical profile for integration into the dashboardThe side profile clearly shows the slim display unit and the position of the rear housing behind the 9-inch touchscreen. This allows installers to assess the available space and plan a clean installation in the dashboard. |
 |

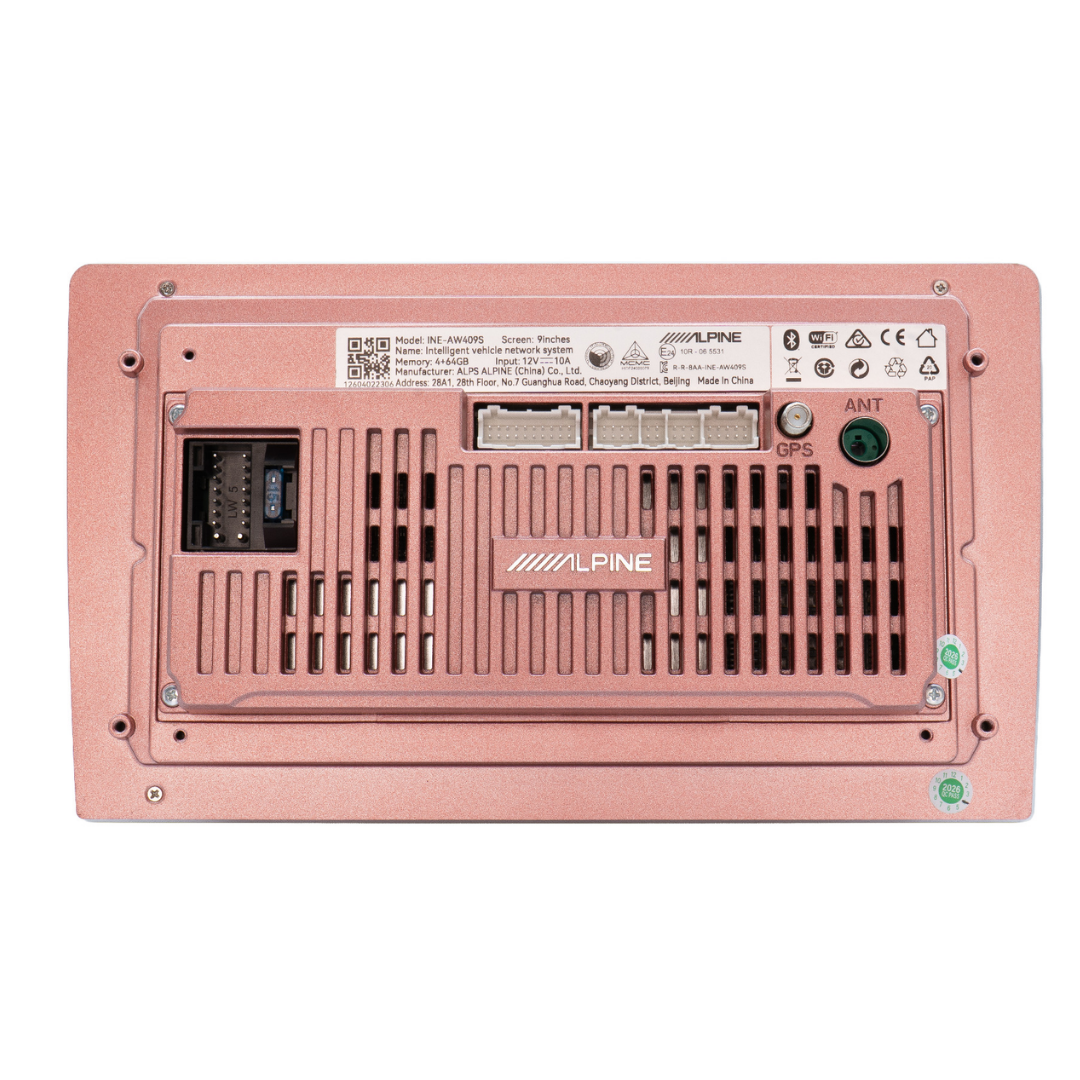

Ready for flexible vehicle integrationThe versatile rear connection panel makes the INE-AW409S suitable for numerous installations. Two USB ports, AHD and composite camera inputs, an AUX input, GPS and antenna connections, and the vehicle’s main wiring harness offer practical integration options. A microphone is integrated; connection of an external microphone is also supported if required. |
FEATURES: |
|
| DISPLAY SIZE | 9″ |
| OPERATING SYSTEM | ANDROID 13 |
| CPU PROCESSOR | CORTEX-A35 / 1.50GHZ |
| RAM | 4GB |
| INTERNAL STORAGE | 64GB |
| GOOGLE PLAY STORE | YES |
| MENU LANGUAGES | 22 LANGUAGES |
| HOME SCREEN | CUSTOMIZABLE WITH INTERCHANGEABLE SOURCE WIDGETS |
| SCREEN COLORS | 16 ADJUSTABLE BACKGROUND COLORS |
| STEERING WHEEL CONTROL | YES / OPTIONAL ADAPTER MAY BE REQUIRED |
| SWC LEARNING FUNCTION | YES |
| DISPLAY | LAMINATED 9″ TOUCHSCREEN |
| DISPLAY RESOLUTION | 1280 × 720 HD |
| MULTI-TOUCH CONTROL | TAP / DRAG / SWIPE / PINCH |
| WIFI | YES |
| USB | 2 X REAR USB PORTS |
| CAMERA INPUT | AHD AND COMPOSITE |
| AUXILIARY INPUT | YES |
| BLUETOOTH | BLUETOOTH 5.0 |
| BUILT-IN MICROPHONE | YES |
| EXTERNAL MICROPHONE | SUPPORTED |
| HANDS-FREE CALLING | YES |
SPECIFICATIONS: |
|
| DISPLAY SIZE | 9″ |
| OPERATING SYSTEM | ANDROID 13 |
| CPU PROCESSOR | CORTEX-A35 / 1.50GHZ |
| RAM | 4GB |
| INTERNAL STORAGE | 64GB |
| GOOGLE PLAY STORE | YES |
| MENU LANGUAGES | 22 LANGUAGES |
| HOME SCREEN | CUSTOMIZABLE WITH INTERCHANGEABLE SOURCE WIDGETS |
| SCREEN COLORS | 16 ADJUSTABLE BACKGROUND COLORS |
| STEERING WHEEL CONTROL | YES / OPTIONAL ADAPTER MAY BE REQUIRED |
| SWC LEARNING FUNCTION | YES |
| DISPLAY | LAMINATED 9″ TOUCHSCREEN |
| DISPLAY RESOLUTION | 1280 × 720 HD |
| MULTI-TOUCH CONTROL | TAP / DRAG / SWIPE / PINCH |
| WIFI | YES |
| USB | 2 X REAR USB PORTS |
| CAMERA INPUT | AHD AND COMPOSITE |
| AUXILIARY INPUT | YES |
| BLUETOOTH | BLUETOOTH 5.0 |
| BUILT-IN MICROPHONE | YES |
| EXTERNAL MICROPHONE | SUPPORTED |
| HANDS-FREE CALLING | YES |
| BRAND | |
|---|---|
| FEATURES | 9'', ANDROID SYSTEM, ANDROID AUTO, APPLE CARPLAY, AM/FM (RDS) TUNER, AUX, USB, BLUETOOTH |
| PRE OUTS | 3 RCA (FRONT/REAR/SUB) |
| MEMORY | 4GB+64GB (8 CORE) – 9" |
